Lavor WALLMOUNT1211 Wall Mounted Electric Pressure Washer
A trolley washer takes up floor space. Its hose and lead cross the walkway, and in a busy wash bay that slows your crew.

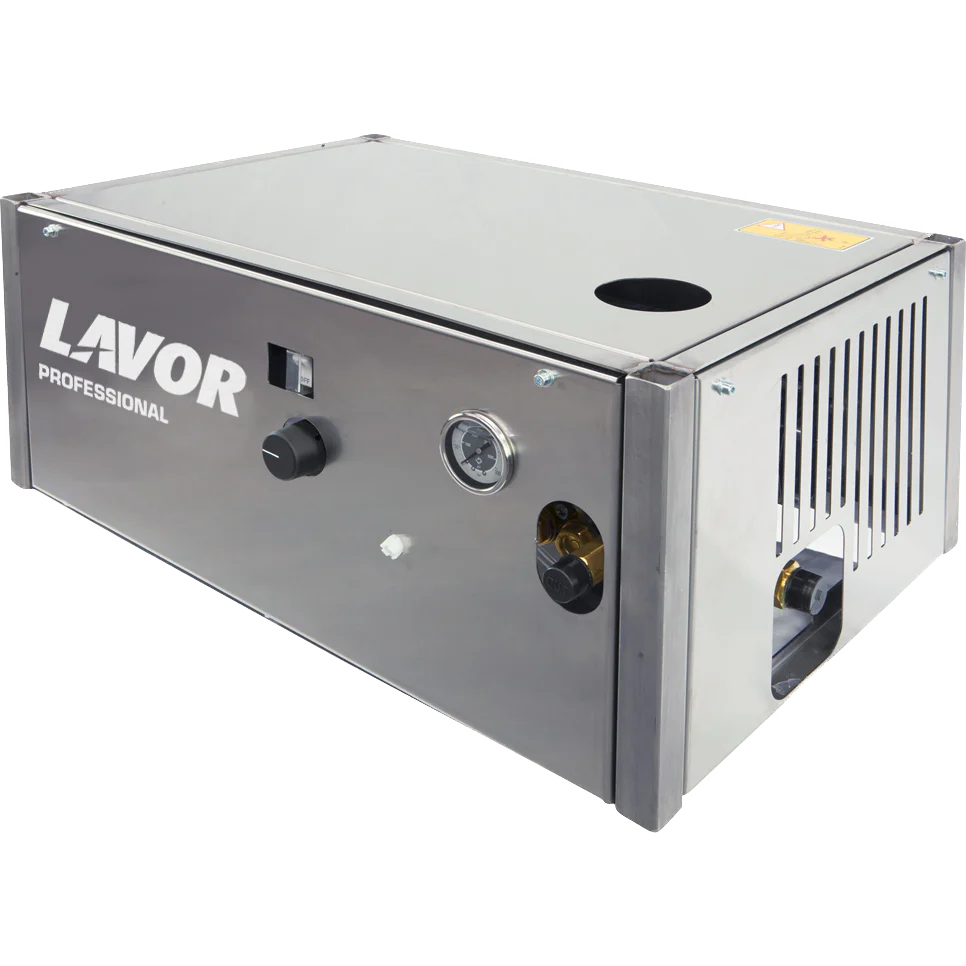

The WALLMOUNT1211 bolts to the wall in a stainless steel cabinet. You get up to 1800 PSI and 11.6 litres per minute on tap, with a clear floor underneath.
It runs on a 240V 15 amp single phase supply, so you don't need three phase power on site.
Features, Benefits & Outcomes
-
Stainless steel wall mount cabinet keeps the floor clear and the machine out of the way of vehicles.
-
240V 15 amp single phase motor runs without three phase power.
-

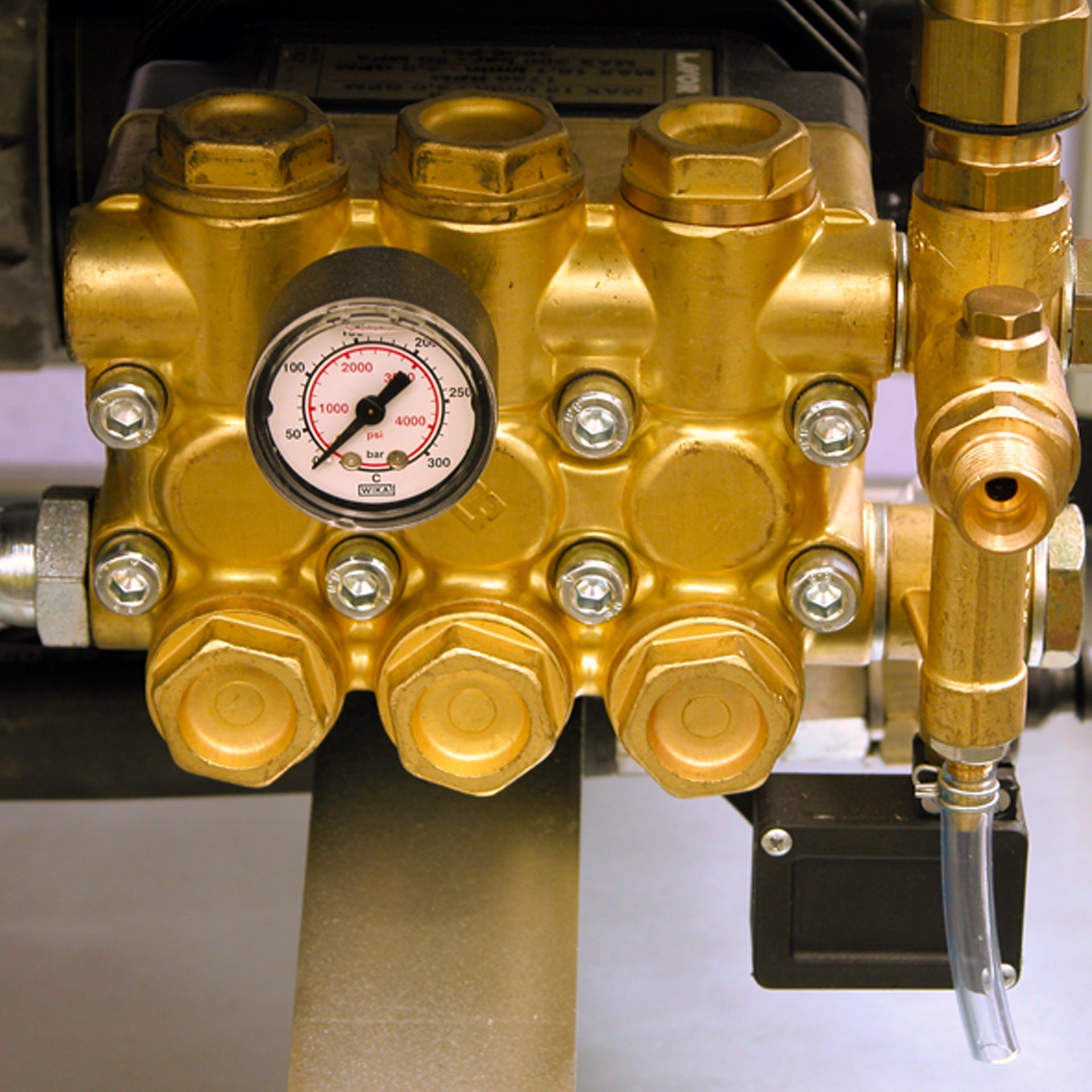

Lavor CL5 brass head pump at 1450 RPM turns slowly, which means less wear over long shifts.
-
K7 unloader drops line pressure to zero when you release the trigger, so the machine carries less stress between washes.
-
Elastic joint coupling between motor and pump absorbs the shock of every start and stop.
User Manuals
WALLMOUNT1211 Spec Sheet (PDF)
WALLMOUNT1211 Manual (PDF)
Technical Specifications
- Model: WALLMOUNT1211 (36077-00048)
- Maximum operating pressure: 1800 PSI
- Standard operating pressure: 1740 PSI
- Water volume: 11.6 litres/minute, 696 litres/hour
- Maximum water temperature: 40°C
- Motor: 240V 15 amp, single phase, 3.0kW (4.0HP), 1450 RPM
- Pump: Lavor CL5 crankshaft pump, brass head, ceramic pistons, stainless steel valves
- Unloader: K7
- Hose: 10m double steel braided high pressure hose
- Lance: industrial stainless steel spray lance
- Shutdown: automatic shutdown system
- Detergent: low pressure detergent pickup (optional)
- Cabinet: stainless steel wall mount
- Dimensions (L x W x H): 75cm x 50cm x 31cm
- Weight: 42kg
WALLMOUNT1211 or WALLMOUNT2015?
Choose the 1211 if you have single phase power. If you have three phase and want more pressure, the WALLMOUNT2015 delivers 3000 PSI at 15 litres per minute.
WALLMOUNT1211 FAQ
What power supply does it need?
A 240V single phase 15 amp supply. A 15 amp outlet is different to a standard 10 amp power point, so check with your electrician before you install.
Can I run hot water through it?
No. It is a cold water machine with a 40°C water limit. For grease and oil, see our hot water pressure washers.
What happens when I release the trigger?
The K7 unloader drops the line pressure to zero and the automatic shutdown system stops the motor.
Where is it used?
Lavor builds it for heavy use sites such as automotive dealership wash bays, workshops and factories where floor space is tight.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
