TTi TopCrop 400L Short Slip On Field Sprayer
A long tank can eat the whole tray and leave no room for your gear. You still want enough volume to get through a big job without a refill.

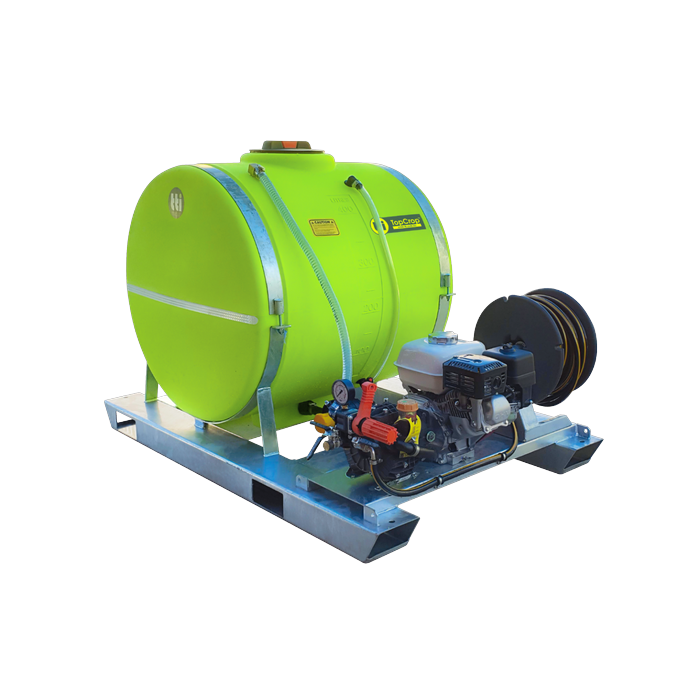

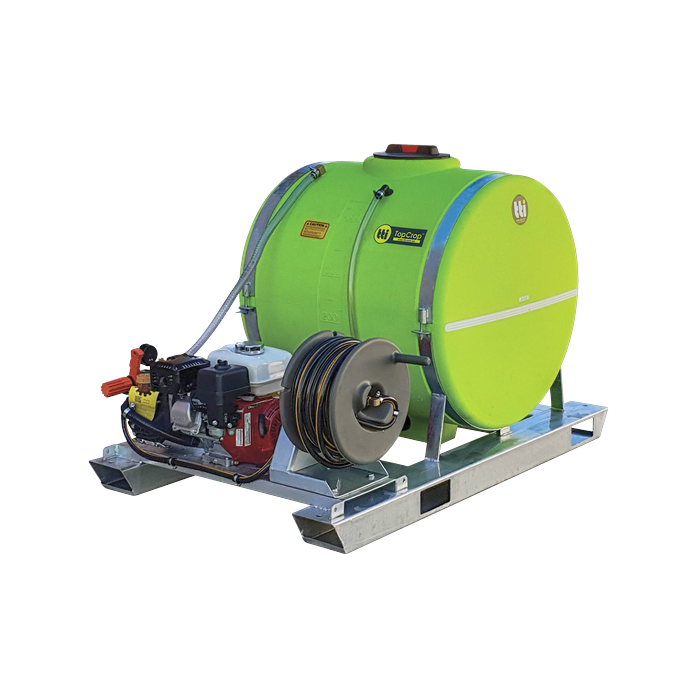

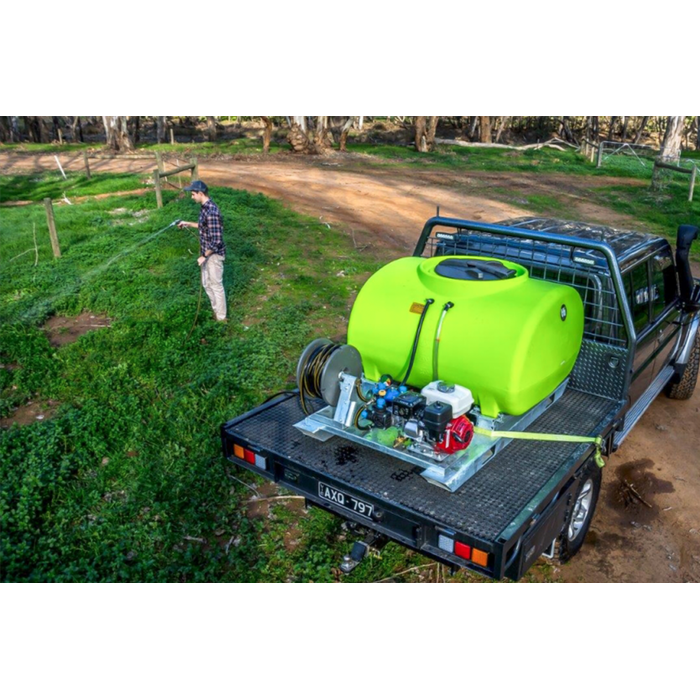

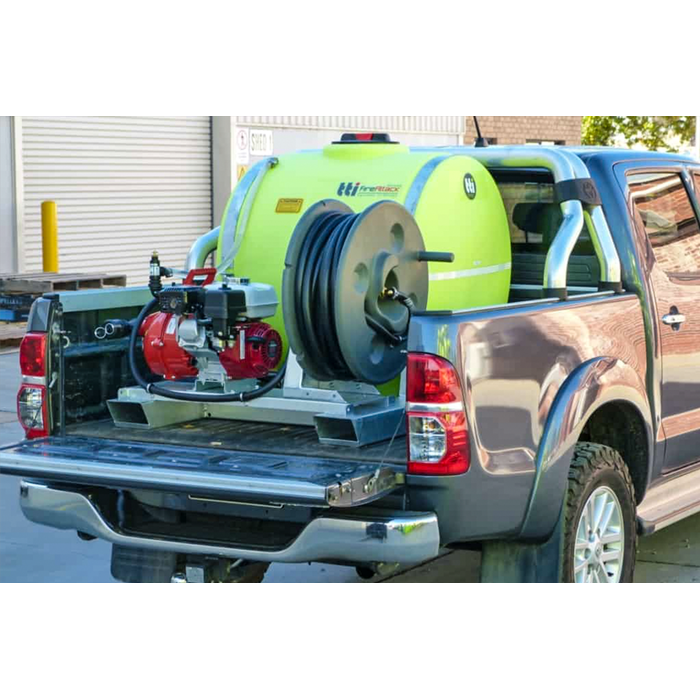

The TopCrop 400L Short has a strap mount tank with a compact 1600 x 890mm footprint. A Honda GX200 engine drives a Bertolini pump at 22L/min, and the 30m hose reel reaches well away from the vehicle. The forkable galvanised frame makes it easy to load onto a ute or trailer.
Features, Benefits & Outcomes
-
400L short tank: Good volume in a compact footprint
-
25 year tank warranty: Built to last
-
Honda GX200 engine: Reliable power with a 3 year factory warranty
-
Bertolini pump: 22L/min of steady flow to the gun or boom
-

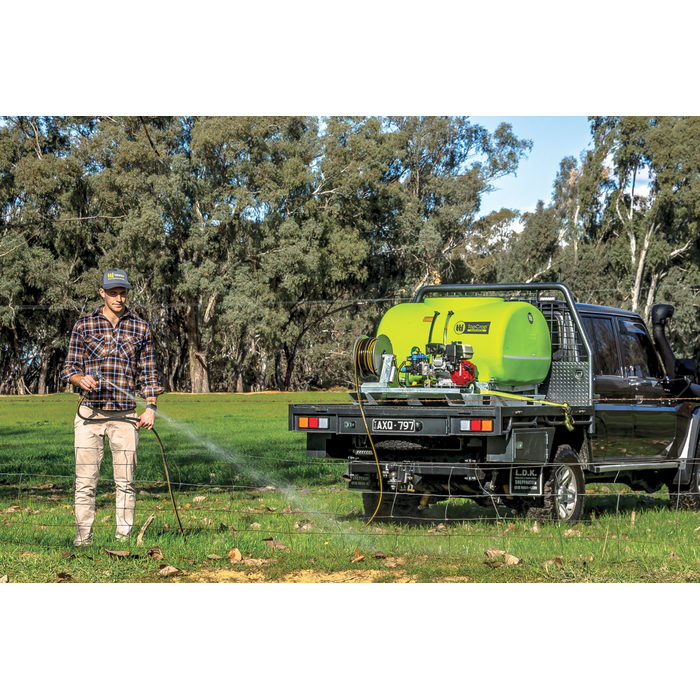

30m hose reel: Reach well beyond the vehicle
-
Drainable sump: Use nearly every litre and clean out easily
-
Forkable galvanised frame: Easy to load and secure
-
Suction filter with auto shut off: Clean it without losing your mix
Technical Specifications

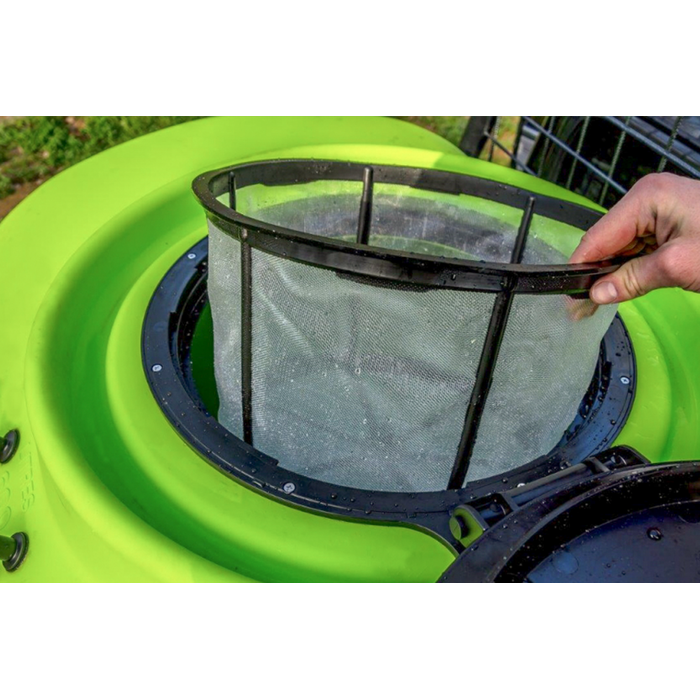

- Tank: 400L UV stabilised poly, strap mount, 250mm screw lid with basket filter
- Engine: Honda GX200
- Pump: Bertolini, 22L/min, 20 bar
- Controls: Pressure regulator with gauge and bypass agitation
- Hose: 30m x 10mm on a heavy duty poly reel, adjustable pistol grip gun
- Filtration: Suction filter with auto shut off
- Frame: Galvanised steel with forklift pockets and handling bars
- Size: 1600 x 890 x 1000mm (LWH)
- Weight: 72kg
- Warranty: 25 years on the tank, 3 years on the Honda engine
Optional Upgrades
Customise your TopCrop with these upgrades. Pricing is on enquiry.
- 50m SuperReel auto-rewind hose reel
- 4m, 6m or 8m galvanised steel boom with breakaway and boom mount brackets
Request a Quote
Tell us which upgrades you want and we will send you a quote. Contact us at 1300 079 161 or fill out the form below.
TopCrop 400L Short FAQ
What does Short mean?
The Short model uses a strap mount tank with a more compact footprint than the standard long tank, so it takes up less tray space.
Can I add a boom?
Yes. A 4m, 6m or 8m boom is available with mount brackets. Booms suit the 22L/min pump, so ask us about your paddock size first.
Can I spray chemicals through it?
Yes, for herbicides, pesticides and liquid fertilisers. Check each product is compatible with polyethylene, and follow the label.
