TTi TopCrop 1000L Slip On Field Sprayer
On a big property, every refill costs you time on the road. You need a tank that lets you cover serious ground in a single load.

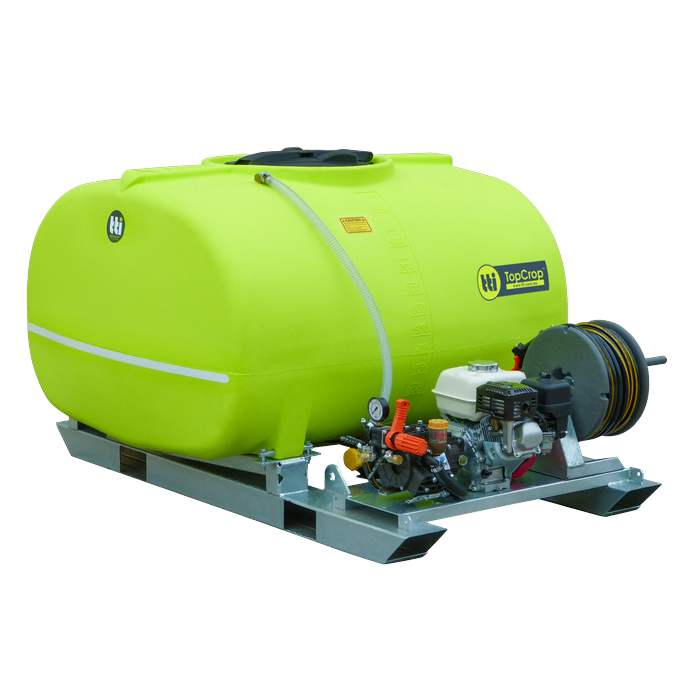

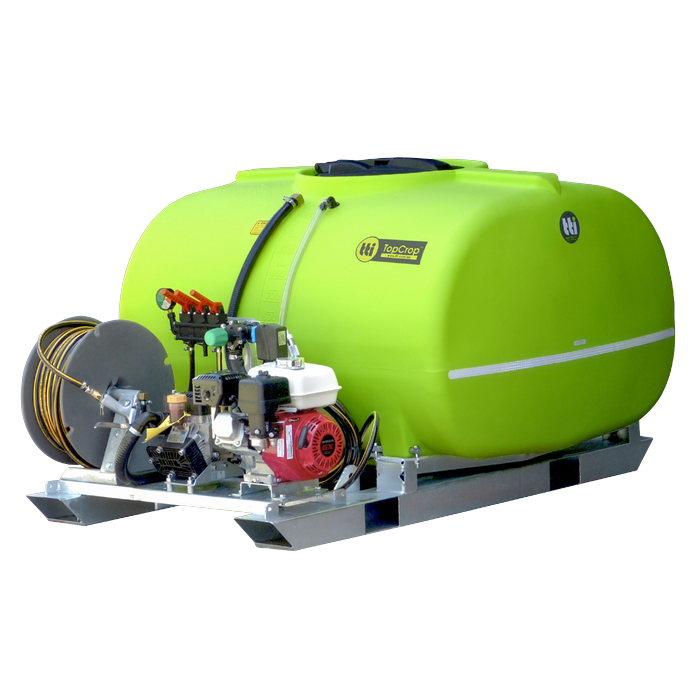

The TopCrop 1000L is the largest in the range, with a full 1000 litres of mix on a forkable galvanised frame. A Honda GX200 engine drives a Bertolini pump at 22L/min, and the 30m hose reel reaches well away from the vehicle. A hinged 455mm lid and drainable sump make filling and cleaning easier.
Features, Benefits & Outcomes
-
1000L tank: Our biggest, for the longest runs between refills
-
25 year tank warranty: Built to last
-

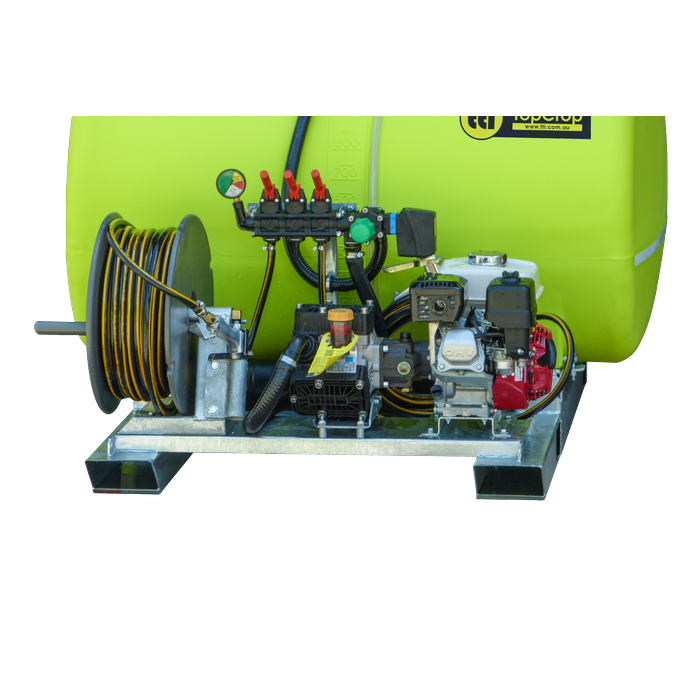

Honda GX200 engine: Reliable power with a 3 year factory warranty
-
Bertolini pump: 22L/min of steady flow to the gun or boom
-

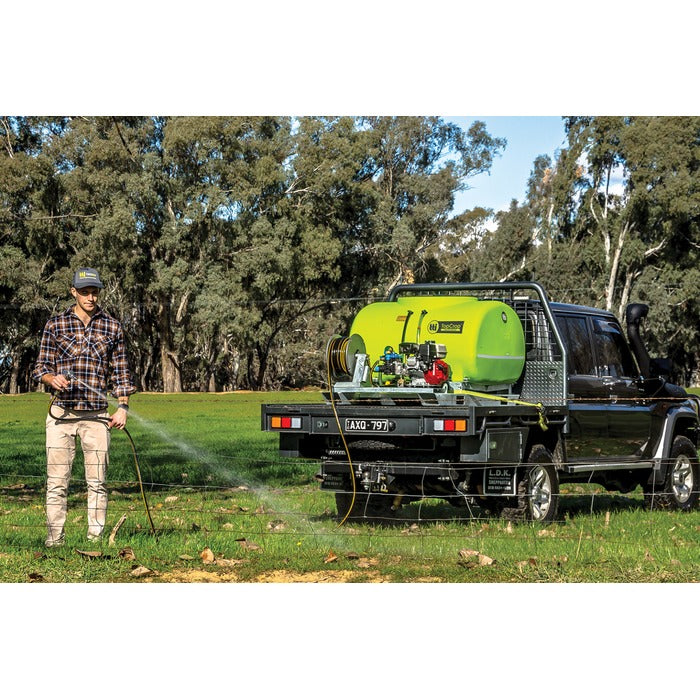

30m hose reel: Reach well beyond the vehicle
-

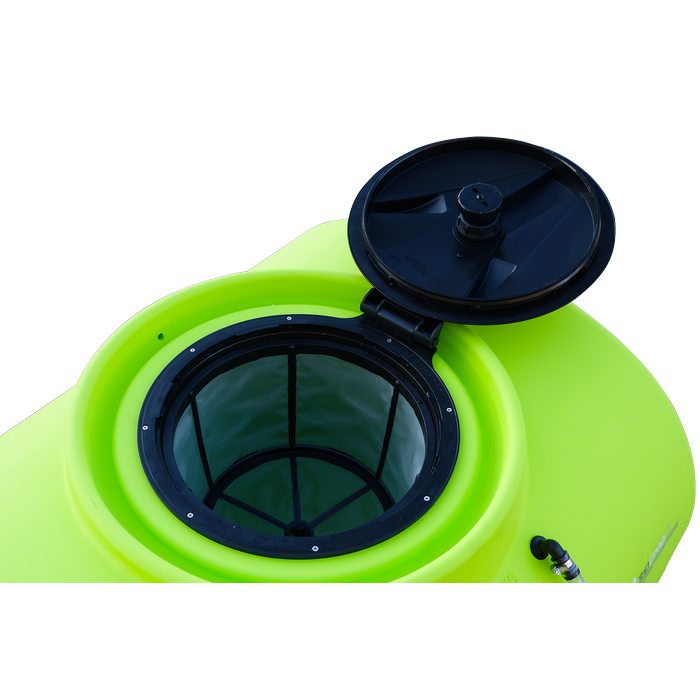

455mm hinged lid: Fill and clean with ease
-
Drainable sump: Use nearly every litre and clean out easily
-
Sight level tube: Check your mix at a glance
Technical Specifications
- Tank: 1000L UV stabilised poly, 455mm hinged lid with basket filter
- Engine: Honda GX200
- Pump: Bertolini, 22L/min, 20 bar
- Controls: Pressure regulator with gauge and bypass agitation
- Hose: 30m x 10mm on a heavy duty poly reel, adjustable pistol grip gun
- Filtration: Suction filter with auto shut off
- Frame: Galvanised steel with forklift pockets and handling bars
- Size: 1750 x 1430 x 1000mm (LWH)
- Weight: 132kg
- Warranty: 25 years on the tank, 3 years on the Honda engine
Optional Upgrades
Customise your TopCrop with these upgrades. Pricing is on enquiry.
- 50m SuperReel auto-rewind hose reel, 12v
- 4m, 6m or 8m galvanised steel boom with breakaway and boom mount brackets
Request a Quote
Tell us which upgrades you want and we will send you a quote. Contact us at 1300 079 161 or fill out the form below.
TopCrop 1000L FAQ

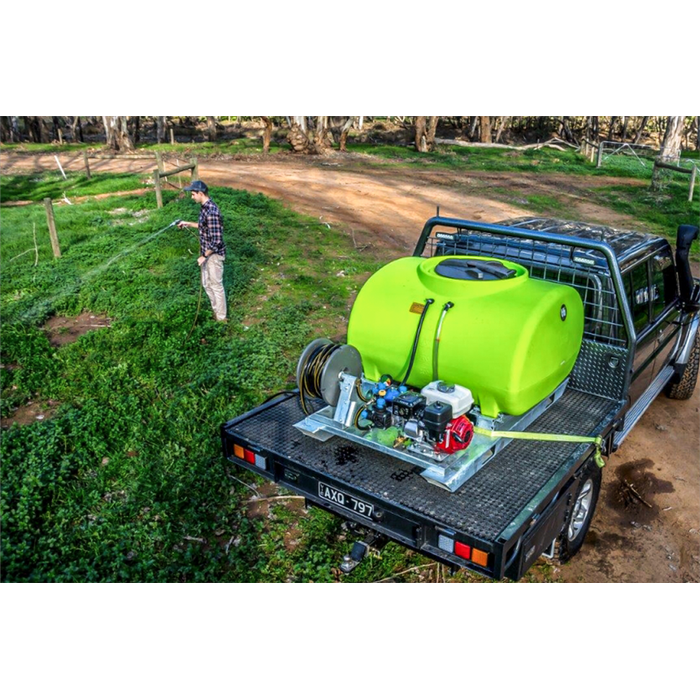

Will it fit my ute or trailer?
It is 1750 x 1430mm and 132kg empty, so it needs a wide tray or a trailer with the right load rating. Check your vehicle first. Call us if you want help.
Can I add a boom?
Yes. A 4m, 6m or 8m boom is available with mount brackets. Booms suit the 22L/min pump, so ask us about your paddock size first.
Can I spray chemicals through it?
Yes, for herbicides, pesticides and liquid fertilisers. Check each product is compatible with polyethylene, and follow the label.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
