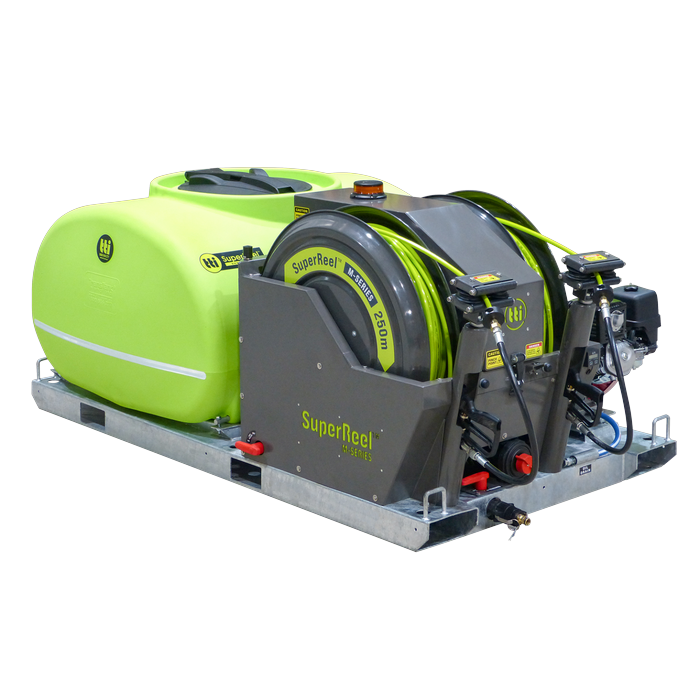

TTi SuperReel M-Series 800L Twin Reel Mechanical Drive Weed Spray Unit

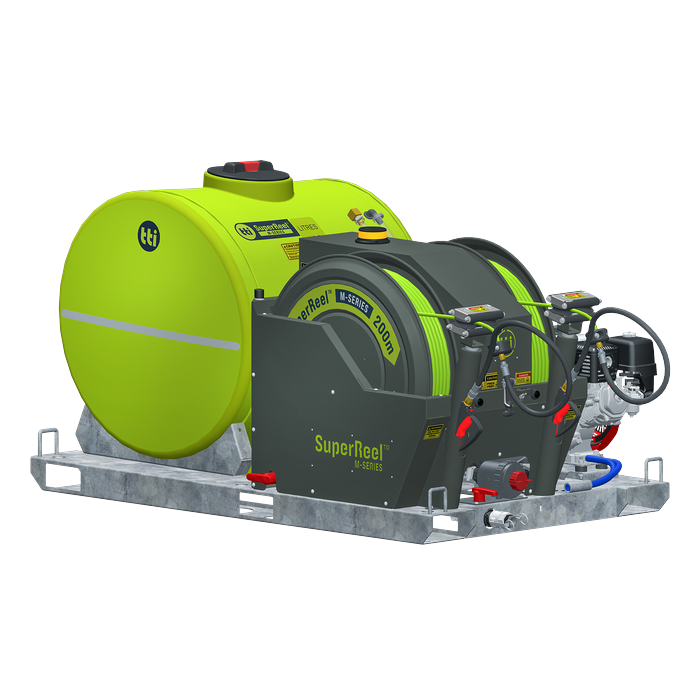

Hand winding 150m of hose twice a day is where contract crews lose time. The SuperReel M-Series 800L drives both reels mechanically from a Honda GX270, so the hose is packed away fast and the pump and reels share one reliable engine. An 800L tank means fewer refills across big blocks and long road verges, with the weight kept low on the tray.
Features, Benefits & Outcomes
-
Mechanical drive reels: Chain driven rewind power, built for daily contract work
-

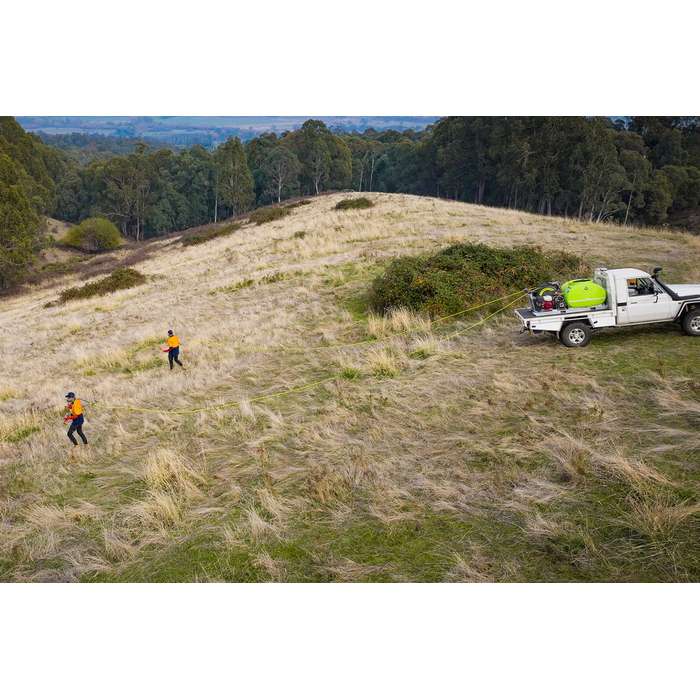

Twin 150m SuperReels: Two operators spray at once with room to reach
-

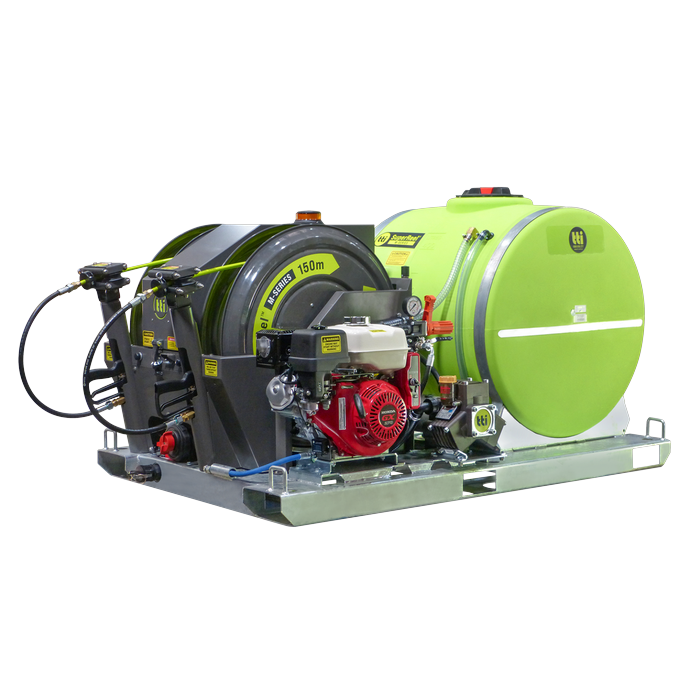

Honda GX270 engine: Powers the pump and the reels from one motor
-
54L/min Bertolini pump: Italian built, runs at 580psi (about 40 bar)
-
HawkLine remote: Start and stop the engine, rewind reels and open valves up to 2km away
-
Integrated flush system: Isolate the chemical and flush the pump and lines with fresh water
-
Fully drainable tank: Use every drop of spray mix, backed by a 25 year tank warranty
-
Forkable galvanised frame: Lift from any side with pre-drilled mounting holes
Technical Specifications

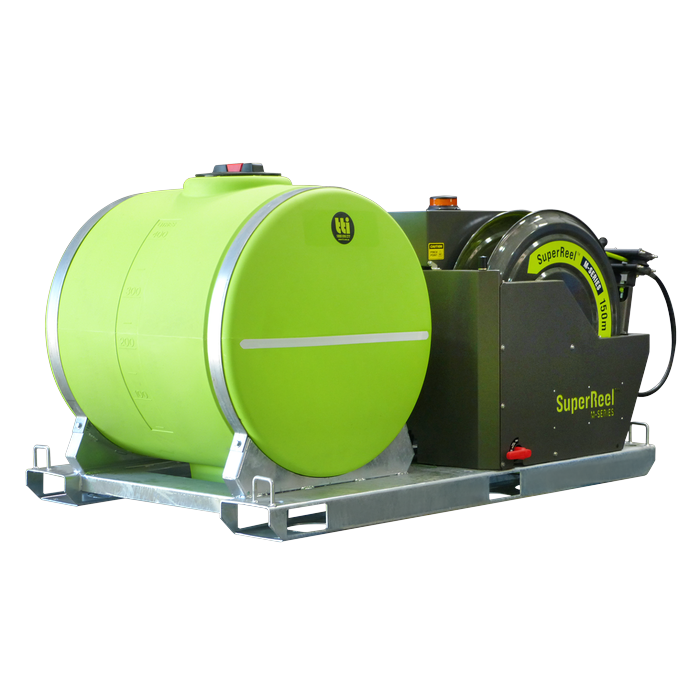

- Tank: 800L UV stabilised poly, 450mm hinged lid, side calibration tube
- Engine: Honda GX270, oil drain kit included
- Pump: Bertolini, 54L/min, 580psi (about 40 bar), regulator and gauge

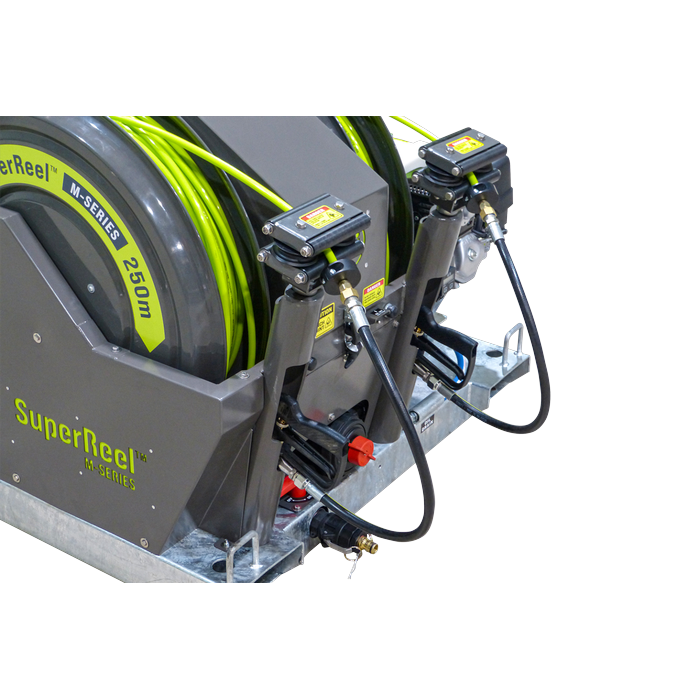

- Reels: Twin chain driven auto rewind with hose guide
- Hose: 150m anti-kink nylon hose per reel (200m or 250m on request)
- Guns: 2 x heavy duty adjustable Turbo400 guns with swivel and whip hose
- Remote: HawkLine IP67 rated, up to 2km range
- Extras: Tachometer, flashing beacon, suction filter with auto shut-off

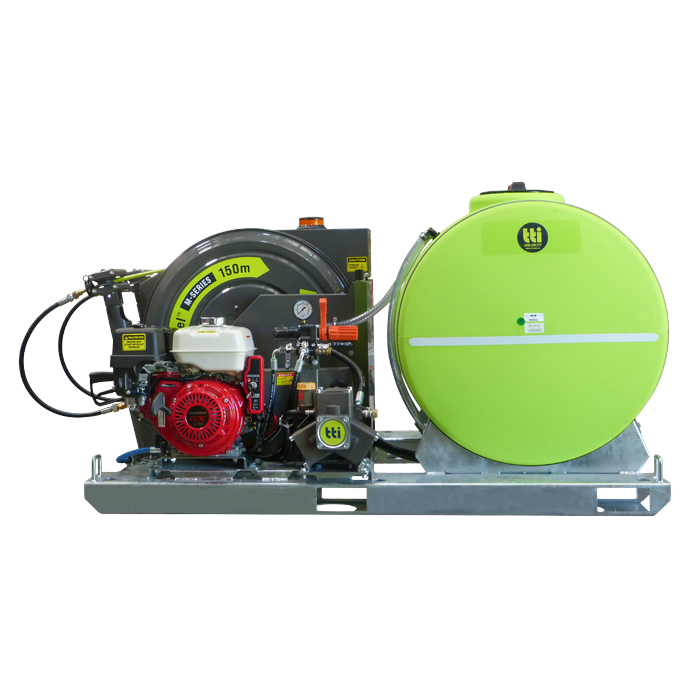

- Frame: Forkable galvanised steel with tie down points
- Size: 2150 x 1430 x 925mm (LWH)
- Warranty: 25 years on the poly tank
Optional Upgrades
- Upgrade to 200m or 250m hose
- Swivel hose guide
- Safe Stop hose guide
- Padded detachable waist belt
- Stainless steel drums
- Quick Fill Venturi system
Pricing is on enquiry.
Request a Quote
Tell us the upgrade you want. Contact us at 1300 079 161 or fill out the form below.
SuperReel M-Series 800L FAQ

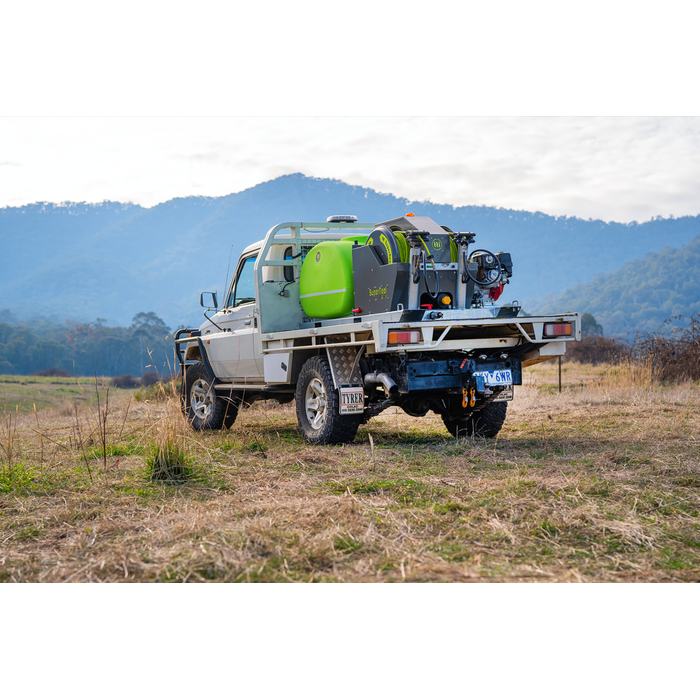

How do I lift it onto my tray?
The frame is forkable from any side and has pre-drilled mounting holes. At 320kg empty, plan on a forklift or loader.
Can I spray chemicals through it?
Yes, for herbicides, pesticides and liquid fertilisers. Check the TTi Liquid Compatibility Chart and follow the label.
Can I use the HawkLine remote with other equipment?
No. It is built for the M-Series and is not recommended for other equipment.
Is it suited to steep or rough country?
It handles varied terrain, but take care on very uneven ground and steep slopes.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
