TTi SuperReel 500L Single Reel Slip On Field Sprayer
Spring Bundle: Get a free 150m hose upgrade with any SuperReel purchase. Submit a quote form to score this deal.
Winding hose back by hand is slow work and it wears out the person doing it. The SuperReel 500L Single has a 12V auto rewind reel with a wireless remote, so the hose is packed away at the push of a button. A 34L/min Bertolini pump and Honda GX200 engine do the rest. A 500L tank is a handy middle size for farms that find 400L too short and 600L more than they need.
Features, Benefits & Outcomes
-
Single 100m SuperReel: Reach well off the track with no hand winding
-
12V auto rewind: Hose winds back at the push of a button
-
Wireless remote: Half and full speed control from the gun end
-
34L/min Bertolini pump: Italian built, runs at 580psi (about 40 bar)
-
Honda GX200 engine: Reliable power with a 3 year warranty
-

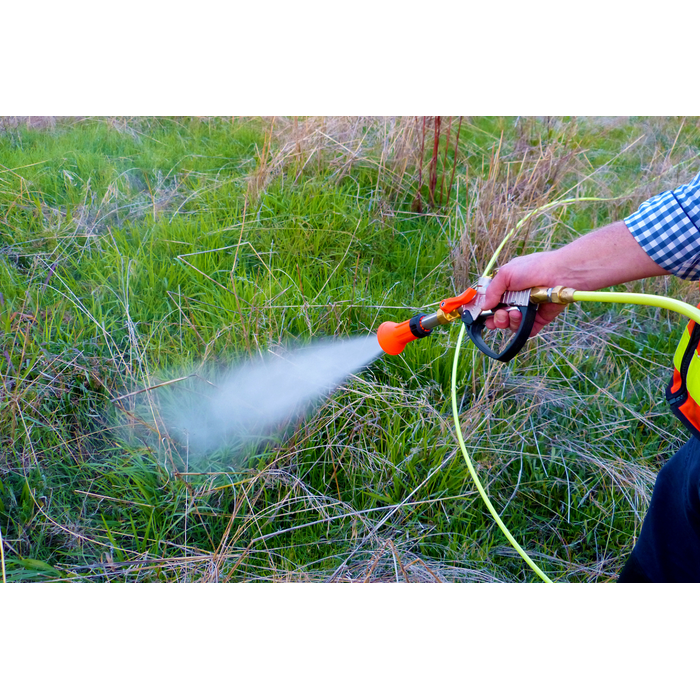

Turbo spray gun: Adjust from fine mist to a long stream
-
Fully drainable tank: Use every drop of spray mix
-
Forkable galvanised frame: Easy to lift on and off with a loader

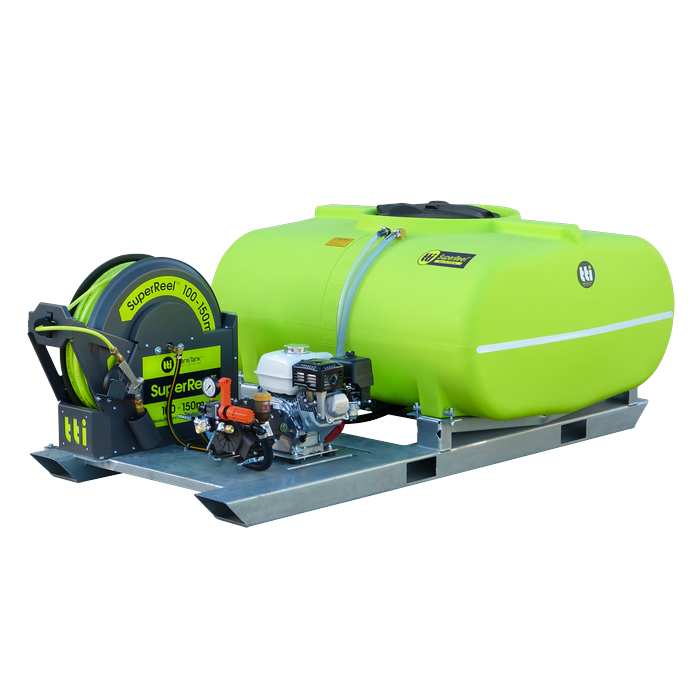

Technical Specifications

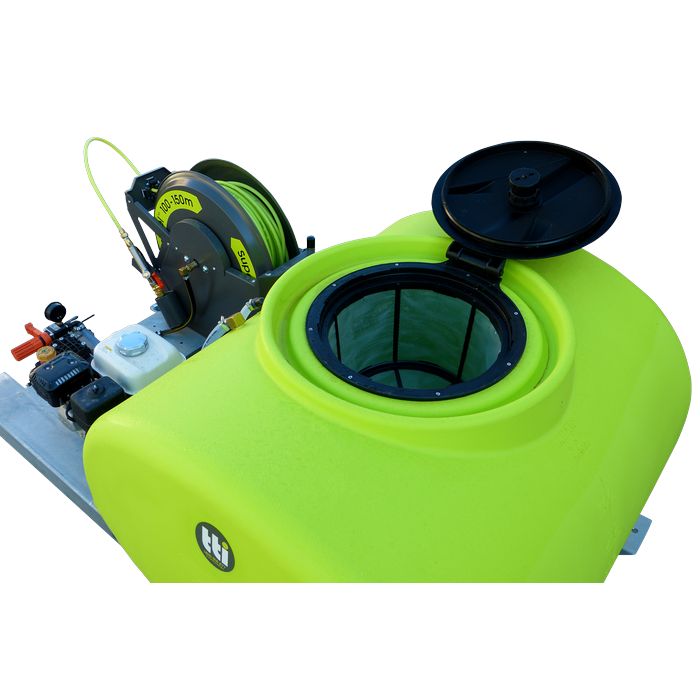

- Tank: 500L UV stabilised poly with side level tube
- Engine: Honda GX200, rubber mounted
- Pump: Bertolini, 34L/min, 580psi (about 40 bar)
- Reel: Single 12V auto rewind SuperReel with wireless remote
- Hose: 100m of 10mm anti-kink nylon hose (50 or 150m on request)
- Gun: Heavy duty adjustable Turbo gun with swivel
- Controls: Pressure regulator with gauge, suction filter with auto shut-off
- Frame: Forkable galvanised steel
- Size: 2030 x 1070 x 690mm (LWH)
- Warranty: 3 years on the Honda engine, 2 years on the reel
Optional Upgrades
- Upgrade to 150m reel (+$323, free with the Spring Bundle)
- Boom, electric start or other accessories
Pricing is on enquiry for accessories.
Request a Quote
Tell us the upgrade you want. Contact us at 1300 079 161 or fill out the form below.
SuperReel 500L Single FAQ
Do I need a tray or trailer to carry it?

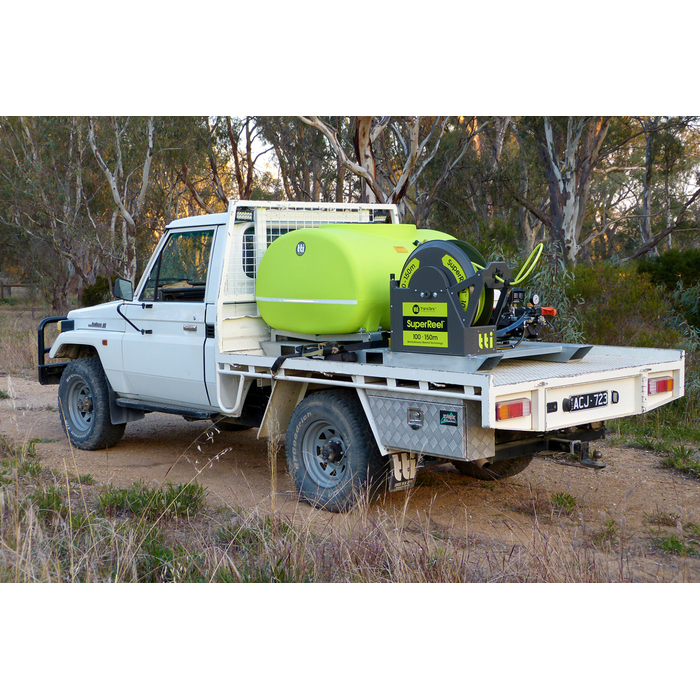

It is a slip on unit with a forkable frame, so it sits on a ute tray, trailer or truck. At 220kg empty, plan on a loader or forklift to lift it.
Can I add a second reel later?
The twin version is a separate build with a bigger 54L/min pump. Contact us and we can compare the two for your job.
Can I spray chemicals through it?
Yes, for herbicides, pesticides and liquid fertilisers. Check the TTi Liquid Compatibility Chart and follow the label.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
