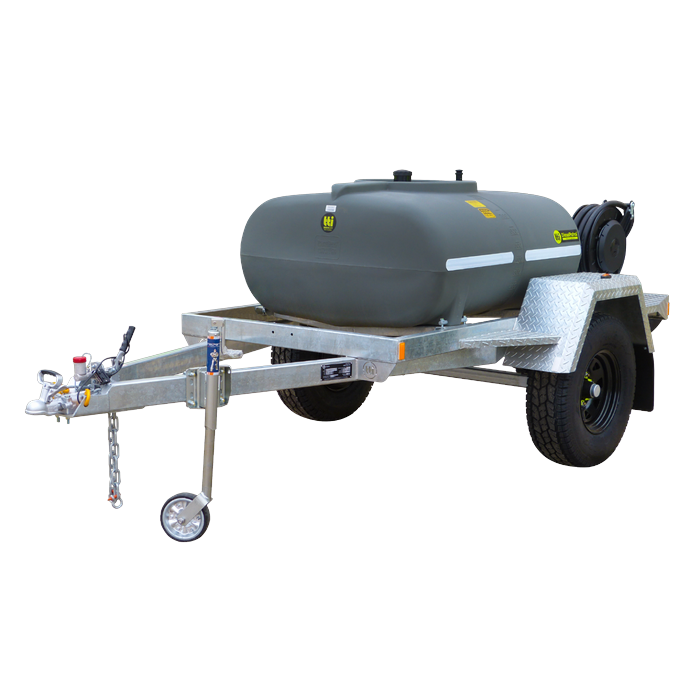

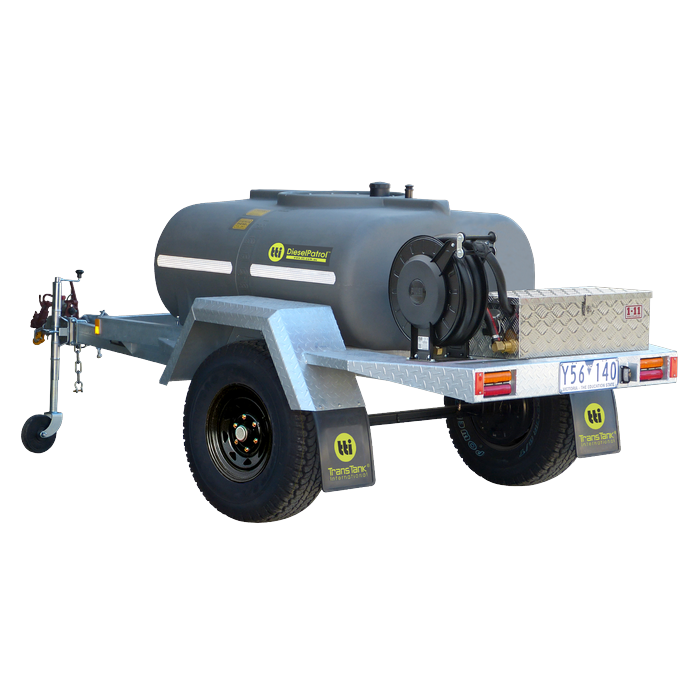

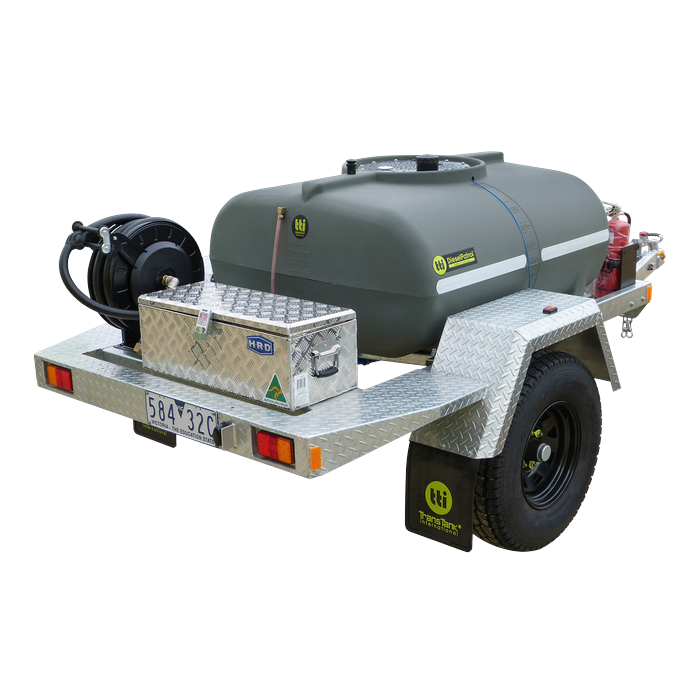

Trans Tank International DieselPatrol15 800L Diesel Fuel Trailer

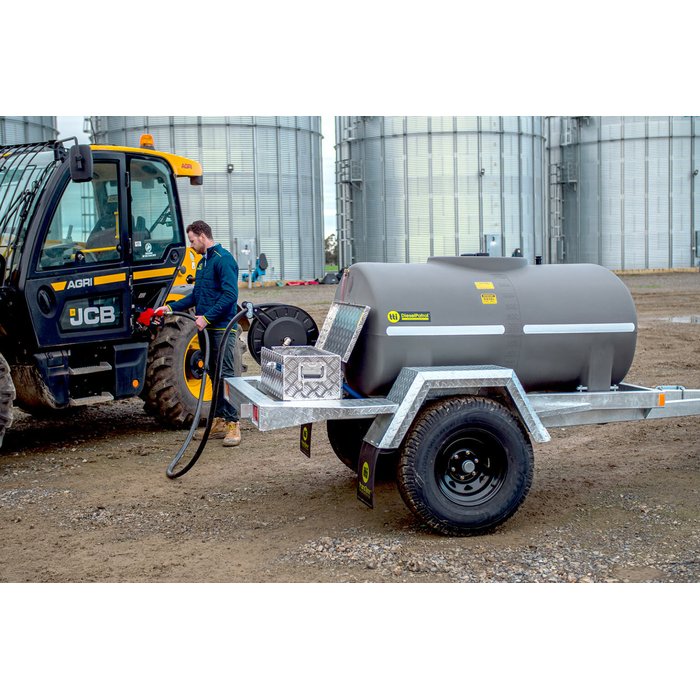

Jerry cans are slow, heavy and easy to spill. Driving machines back to a bowser costs you time on the job.
The DieselPatrol15 800L takes the fuel to your equipment. A fully drainable 800 litre poly tank sits on a hot-dipped galvanised chassis. A 60L/min 12v pump in a lockable toolbox fills machines through a 10m retractable reel.
LiquidLocker™ baffles keep the load steady on rough ground. Choose braked or unbraked to suit how you work.
Features, Benefits & Outcomes
-
800L UV stabilised poly tank drains fully for clean fuel, with a 25 year warranty.
-
LiquidLocker™ baffles limit surge so the trailer tows steadier on rough tracks.
-
60L/min 12v pump in a lockable toolbox fills machines quickly and keeps the pump secure.
-
10m retractable reel with 25mm hose reaches your equipment and rolls away clean.
-
Galvanised chassis with 15 inch Landcruiser wheels resists rust and handles rough ground.
Technical Specifications
- Capacity: 800 litres
- Weight (empty): 421kg unbraked, 508kg braked
- Length: 3833mm unbraked, 3883mm braked
- Width: 1910mm unbraked, 1900mm braked
- Height: 1345mm unbraked, 1450mm braked
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Filling point: 2 inch lockable
- Chassis: hot-dipped galvanised steel with 50mm tow hitch
- Wheels and tyres: 15 inch Landcruiser pattern, 6 ply radial
- Pump: 60L/min 12v in lockable toolbox
- Reel and hose: 10m retractable reel, 25mm hose, 1 inch nozzle
- Metering and filtration: 4 digit mechanical flow meter, cartridge filter
- Lights: recessed LED combination tail lights and licence plate light
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades
Honda GX160 490L/min pump: swap the 12v pump for a petrol driven Honda GX160 490L/min pump for faster fills where no battery power is on hand.
Request a Quote
Want the Honda GX160 pump on your DieselPatrol15 800L? We will quote your configuration. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol15 800L FAQ
Can I use it for anything other than diesel?
No. The trailer is built for diesel only. Other liquids can affect safety and may breach transport rules.
Is it road registrable?
The braked version is. It has hydraulic override brakes and lights. The unbraked version is for on farm use only.
Can it go off road?
Yes. It is designed for rugged terrain. Secure the load and stay within weight limits.
What does the LiquidLocker™ baffle system do?
It limits fuel movement inside the tank, so there is less sloshing and more stability over uneven ground.
What maintenance does it need?
Inspect the pump and filter regularly and keep the tank clean. Do not use water to clean the tank, as it contaminates diesel.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
