Trans Tank International DieselPatrol15 3000L Dual Axle Diesel Fuel Trailer

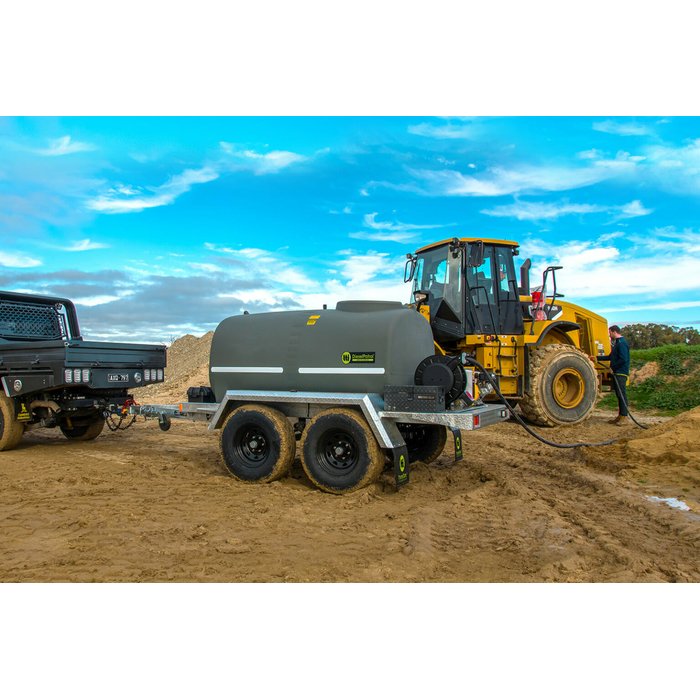

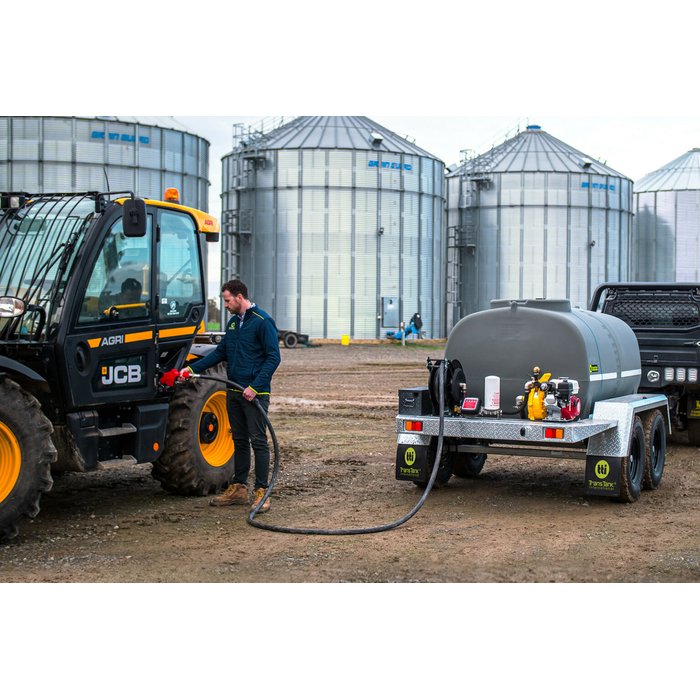

Mines, civil sites and large farms measure fuel in thousands of litres. Topping up from small tanks does not keep pace.

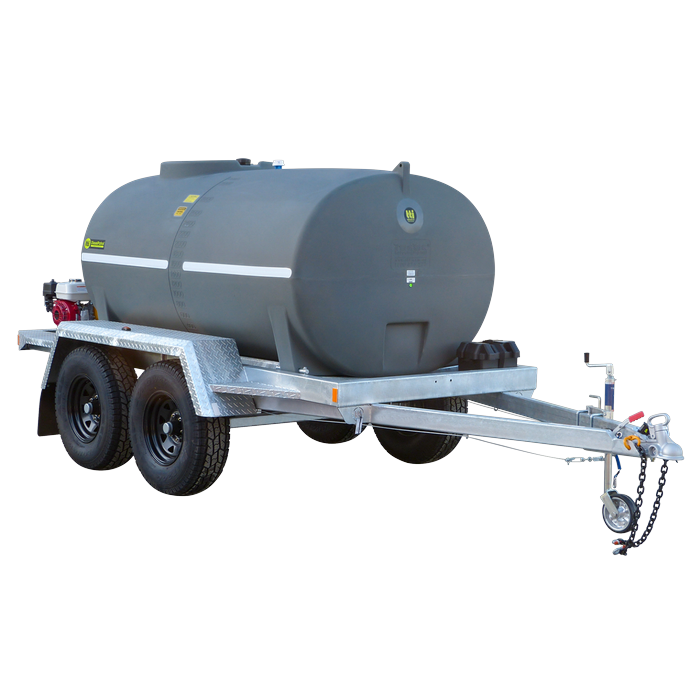

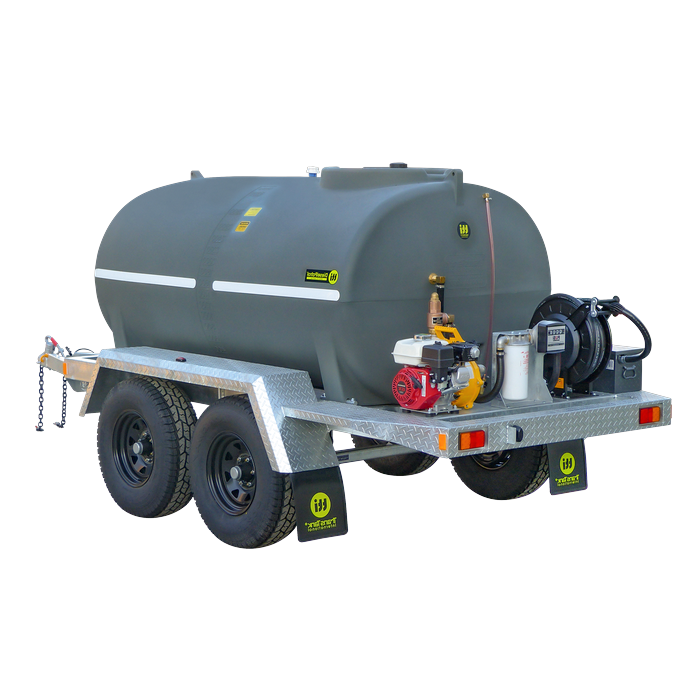

The DieselPatrol15 3000L is the largest trailer in the range. Its dual axle chassis carries 3000 litres and a 70mm tow hitch handles the load. The 60L/min pump takes about 50 minutes to move a full tank through a 10m reel.
Pick unbraked for site use or electric braked for road travel.
Features, Benefits & Outcomes
-
3000L fully drainable poly tank carries the most fuel in the range with a 25 year warranty.
-
70mm tow hitch suits heavy duty tow vehicles for a secure connection.
-
LiquidLocker™ baffles reduce fuel movement for stability when cornering.
-
Retractable 10m reel with flow meter delivers fuel and keeps clear records of each fill.
-
Electric braked option with breakaway makes the trailer road registrable.
Technical Specifications
- Capacity: 3000 litres
- Weight (empty): 900kg unbraked, 963kg braked
- Length: 5058mm unbraked, 5400mm braked
- Width: 2110mm unbraked, 2150mm braked
- Height: 1750mm
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Filling point: 2 inch lockable
- Chassis: hot-dipped galvanised steel, dual axle, 70mm tow hitch
- Wheels and tyres: 15 inch Landcruiser pattern, 6 ply radial
- Brakes (braked version): electric with breakaway system
- Pump: 60L/min 12v in lockable toolbox
- Reel and hose: 10m retractable reel, 25mm anti kink hose, 1 inch nozzle
- Metering and filtration: 4 digit mechanical flow meter, cartridge filter
- Lights: recessed LED combination tail lights and licence plate light
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades

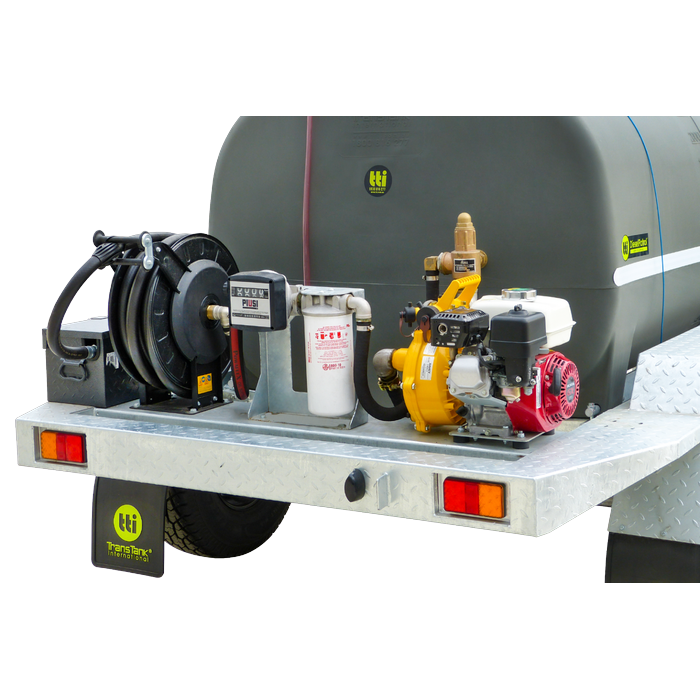

Move fuel without relying on a battery. A Honda GX160 490L/min pump kit can replace the standard 12v pump.
Request a Quote
Request a quote for the Honda GX160 upgrade on the DieselPatrol15 3000L. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol15 3000L FAQ
What coupling does it use?
It has a 70mm tow ball coupling that suits heavy duty vehicles. Make sure your vehicle's rating covers the loaded trailer.
How does the flow meter help?
It gives a real time reading of the diesel you dispense, so you can track fuel across jobs and machines.
How do I prevent spills?
Use the lockable filling point, keep seals and fittings maintained and let the LiquidLocker™ baffles limit slosh in transit.
What upkeep does it need?
Inspect the pump, hoses and tank condition regularly and replace the cartridge filter so the fuel stays clean.
Is it only for diesel?
Yes. It is purpose built for diesel and meets Australian standards for transporting flammable liquids.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
