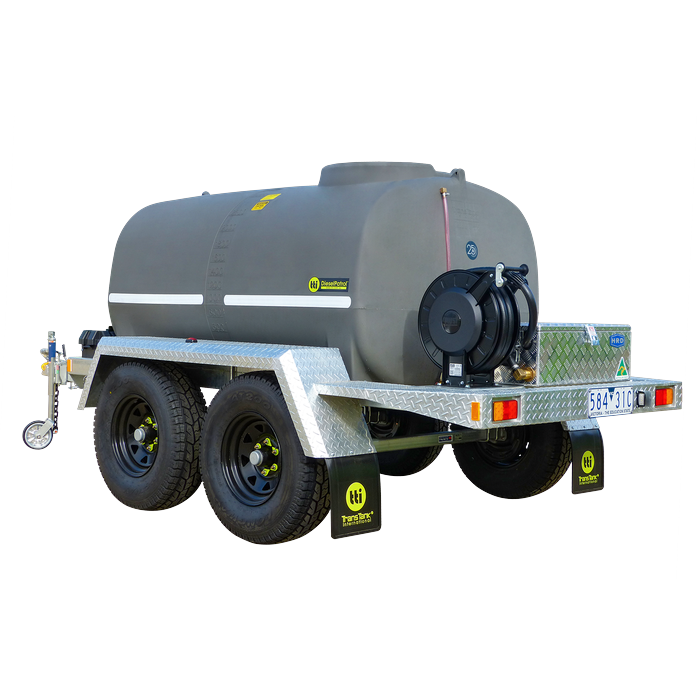

Trans Tank International DieselPatrol15 2400L Dual Axle Diesel Fuel Trailer
Running low mid shift stops a crew cold. Contractors and big properties need a tank that outlasts the work.

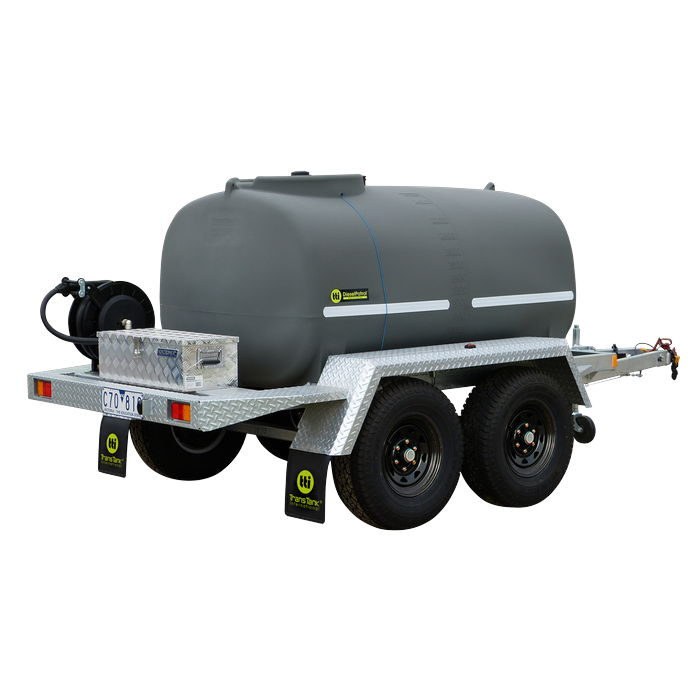

The DieselPatrol15 2400L carries 2400 litres of diesel on a dual axle galvanised chassis. At 60L/min, the pump moves a full tank in about 40 minutes. A 10m retractable reel and 1 inch nozzle put the fuel at the machine.
LiquidLocker™ baffles hold the load steady. Choose unbraked or electric braked to suit where it works.
Features, Benefits & Outcomes
-
2400L UV stabilised poly tank gives you high volume storage with a 25 year warranty.
-
LiquidLocker™ baffle system reduces surge so the trailer stays stable under load.
-
Dual axle galvanised chassis resists rust and spreads the weight of a full tank.
-
12v pump with 4 digit flow meter delivers 60L/min and measures what you dispense.
-
Lockable 2 inch filling point secures the fuel against tampering.
Technical Specifications
- Capacity: 2400 litres
- Weight (empty): 860kg unbraked, 883kg braked
- Length: 4662mm
- Width: 2110mm
- Height: 1781mm
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Filling point: 2 inch lockable
- Chassis: hot-dipped galvanised steel, dual axle, 50mm tow hitch
- Wheels and tyres: 15 inch Landcruiser pattern, 6 ply radial, wheel nut indicators
- Brakes (braked version): electric with breakaway system

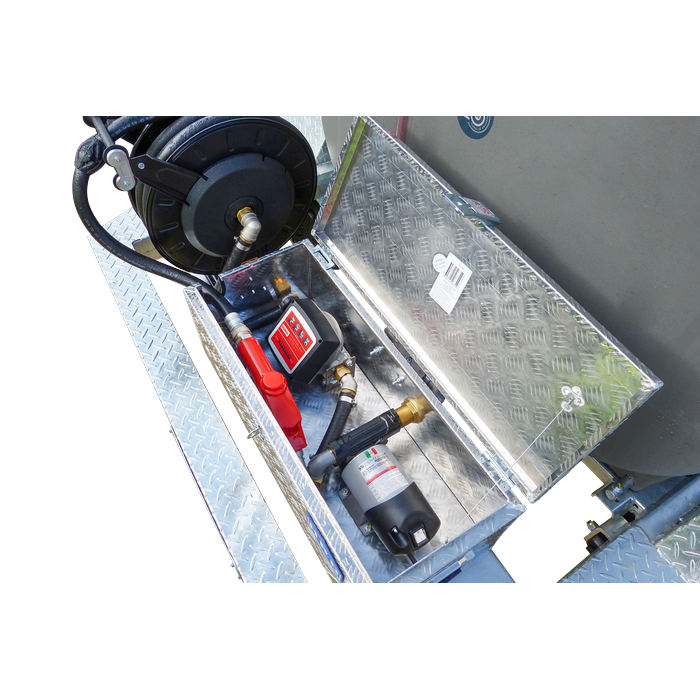

- Pump: 60L/min 12v in lockable toolbox
- Reel and hose: 10m retractable reel, 25mm anti kink hose, 1 inch nozzle

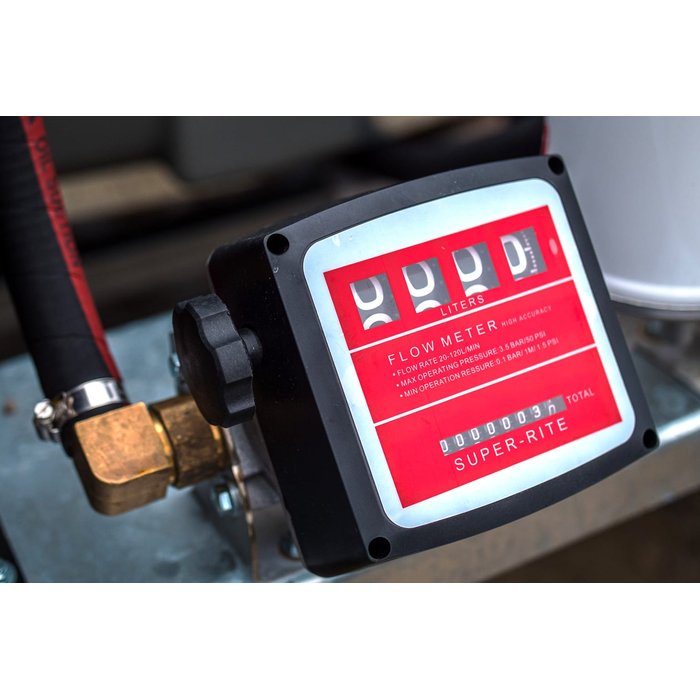

- Metering and filtration: 4 digit mechanical flow meter, cartridge filter
- Lights: recessed LED combination tail lights and licence plate light
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades

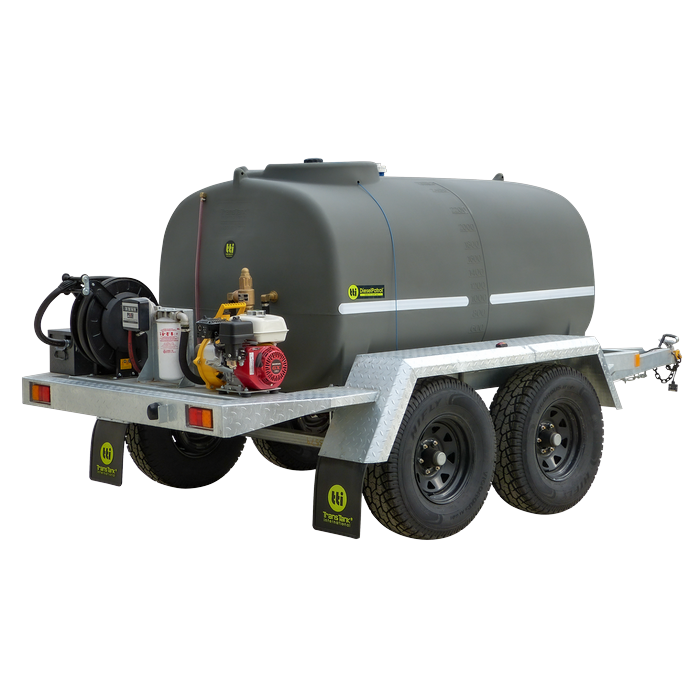

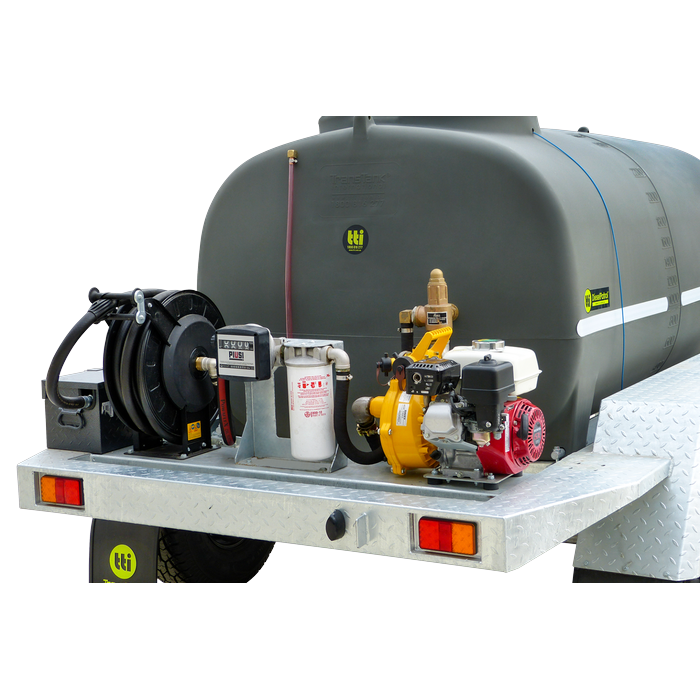

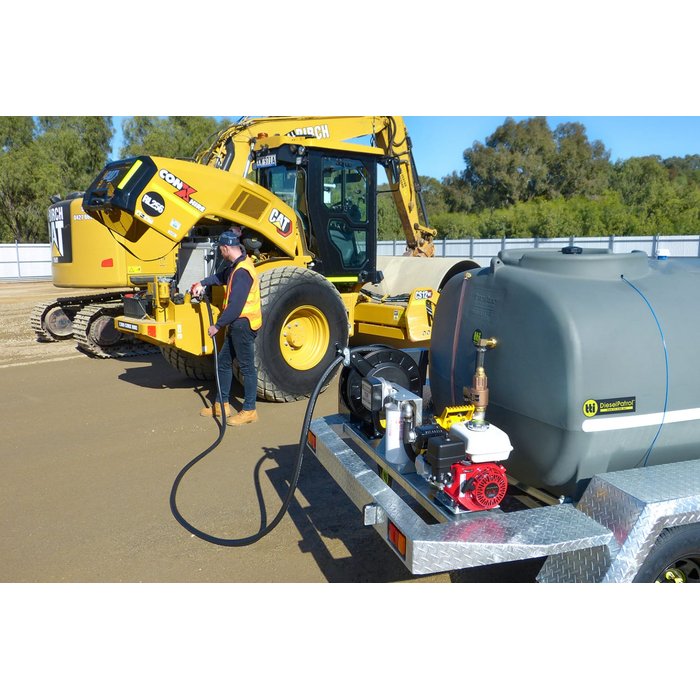

The Honda GX160 490L/min pump kit is available for operators who want a petrol driven pump instead of the standard 12v unit.
Request a Quote
Want the Honda GX160 pump on your 2400L DieselPatrol15? We will price it for you. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol15 2400L FAQ
Which accessories are safe to add?
Only add accessories designed for the DieselPatrol15. Other parts may not fit or may affect safety.
What should I inspect before each job?
Check the pump, filter, hoses, tank for debris, chassis and wheels. Catching wear early avoids downtime.
What does LiquidLocker™ actually do?
It cuts fuel movement inside the tank, which improves stability while you tow.
How do I know what my vehicle can tow?
Towing capacity depends on your vehicle. Confirm its rating against the fully loaded trailer weight before you hitch up.
Where should I refuel from it?
Park on level ground, keep ventilation open and stay clear of open flames. Check for leaks before and after.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
