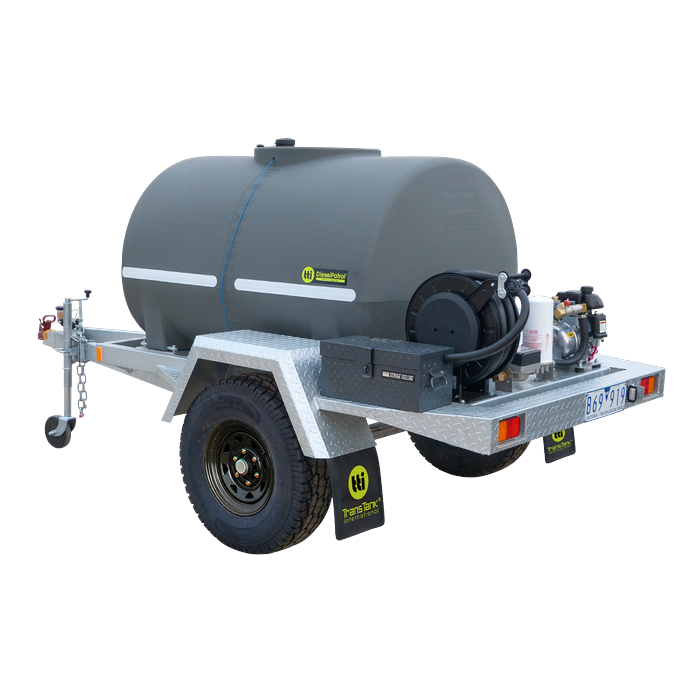

Trans Tank International DieselPatrol15 1500L Single Axle Diesel Fuel Trailer
Big fuel volume does not have to mean a big trailer. Some jobs need 1500 litres without the extra axle.

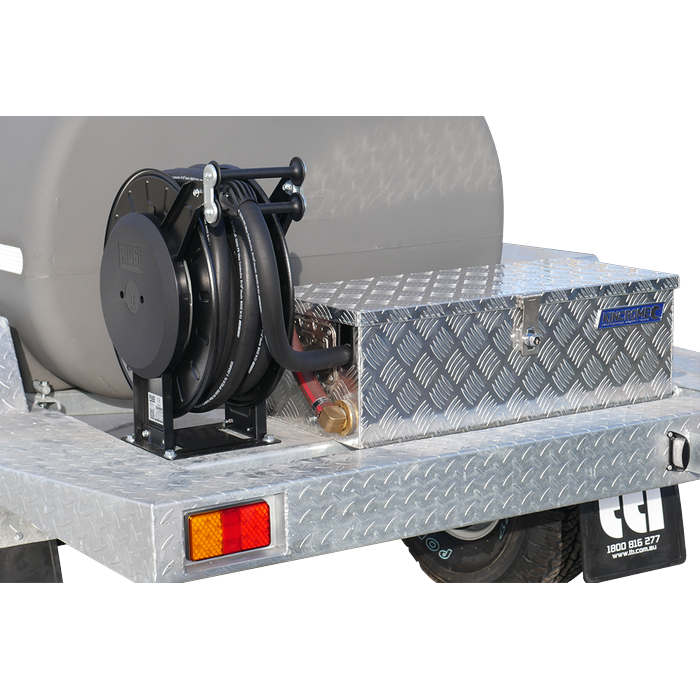

The DieselPatrol15 1500L single axle packs a fully drainable tank onto one galvanised axle. Its 60L/min pump drains the tank in about 25 minutes. A 10m reel and 1 inch nozzle put the fuel where your machines work.
A flow meter tracks each fill. Choose unbraked for the property or hydraulic braked for the road.
Features, Benefits & Outcomes
-
1500L poly tank on a single axle carries serious volume in a compact footprint.
-
25 year tank warranty backs the UV stabilised, fully drainable construction.
-
4 digit mechanical flow meter records every litre so your fuel use stays visible.
-
60L/min 12v pump in a lockable toolbox fills equipment at pace and keeps the pump safe.
-
LiquidLocker™ baffles limit surge so a full tank tows predictably.
Technical Specifications
- Capacity: 1500 litres
- Weight (empty): 454kg unbraked, 534kg braked
- Length: 3832mm unbraked, 3883mm braked
- Width: 1910mm
- Height: 1721mm unbraked, 1726mm braked
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Filling point: 2 inch lockable
- Chassis: hot-dipped galvanised steel, single axle, 50mm tow hitch
- Wheels and tyres: 15 inch Landcruiser pattern, 6 ply radial, wheel nut indicators
- Pump: 60L/min 12v in lockable toolbox
- Reel and hose: 10m retractable reel, 25mm anti kink hose, 1 inch nozzle
- Metering and filtration: 4 digit mechanical flow meter, cartridge filter
- Lights: recessed LED combination tail lights and licence plate light
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades
For refuelling away from a battery supply, the Honda GX160 490L/min pump kit is available in place of the 12v pump.
Request a Quote
Interested in the Honda GX160 pump on this 1500L single axle trailer? We will send you a quote. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol15 1500L Single Axle FAQ
What do I need to tow it?
A 4WD, ute or light truck with a matching tow hitch and a towing capacity above the fully loaded weight of the trailer.
How much does a full tank weigh?
Diesel adds roughly 1250kg on top of the empty trailer weight, so always check your vehicle's towing rating first.
Do I get a choice of brakes?
Yes. Choose unbraked for on farm use or hydraulic override braked for a road registrable trailer.
Can the reel hose be replaced?
Yes. Extra hose lengths and replacement filters are available as accessories. Ask us for compatible options.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
