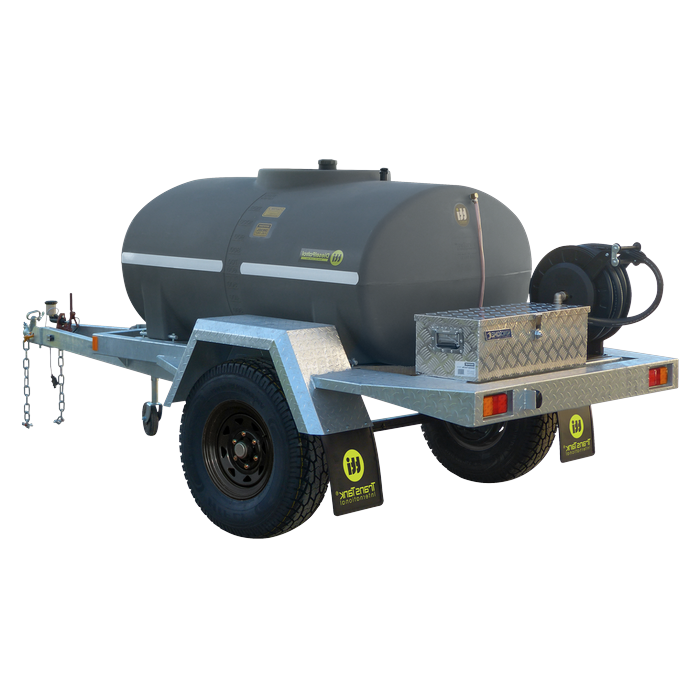

Trans Tank International DieselPatrol15 1200L Diesel Fuel Trailer
Fuel stops pull machines off the job. A bigger on site tank means fewer of them.
The DieselPatrol15 1200L carries enough diesel for a long working day and is still a single axle trailer. At 60L/min the pump needs about 20 minutes to move a full tank. A 10m reel brings the nozzle to your machine.
A galvanised chassis and fully drainable poly tank give you a rig built for paddock tracks. Choose unbraked or hydraulic braked below.
Features, Benefits & Outcomes
-
1200L UV stabilised tank holds more fuel per trip and carries a 25 year warranty.
-
LiquidLocker™ baffle system holds back surge so the load stays settled on uneven ground.
-
60L/min 12v pump in a locked toolbox moves fuel quickly and keeps the pump out of reach.
-
10m retractable reel with 1 inch nozzle reaches the machine and tidies away after use.
-
Single axle chassis at 453kg unbraked stays simple to tow and easy to manoeuvre.
Technical Specifications
- Capacity: 1200 litres
- Weight (empty): 453kg unbraked, 538kg braked
- Length: 3832mm unbraked, 3883mm braked
- Width: 1910mm
- Height: 1521mm unbraked, 1526mm braked
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Filling point: 2 inch lockable
- Chassis: hot-dipped galvanised steel, single axle, 50mm tow hitch
- Wheels and tyres: 15 inch Landcruiser pattern, 6 ply radial, wheel nut indicators
- Pump: 60L/min 12v in lockable toolbox
- Reel and hose: 10m retractable reel, 25mm anti kink hose, 1 inch nozzle
- Metering and filtration: 4 digit mechanical flow meter, cartridge filter
- Lights: recessed LED combination tail lights and licence plate light
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades

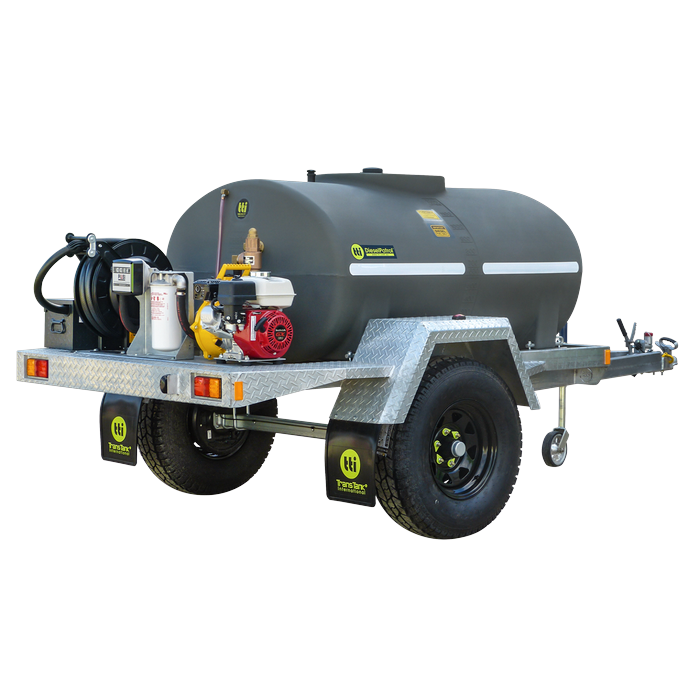

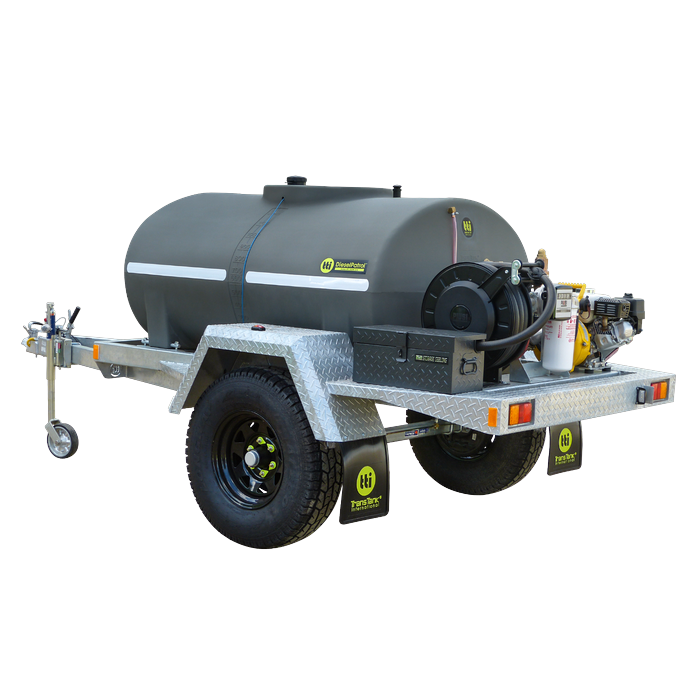

Want pump power independent of the vehicle battery? A Honda GX160 490L/min pump kit replaces the standard 12v pump.
Request a Quote
Want the Honda GX160 pump on a 1200L DieselPatrol15? We will quote your configuration. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol15 1200L FAQ
Does it work for petrol or other fuels?
No. This trailer is designed for diesel only and is not suitable for petrol or other fuels.
Can it be used off road?
Yes. It is built for harsh Australian conditions and handles off road work.
How do I look after the pump?
Check the cartridge filter regularly and replace it when it is dirty. Keep water out of the tank and keep the pump dry when stored.
What safety steps should I follow when refuelling?
Park on level ground, keep flames and sparks away and follow local rules for transporting flammable liquids.
Should I cover it in bad weather?
Yes. Storing it under cover in severe weather extends the life of the components.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
