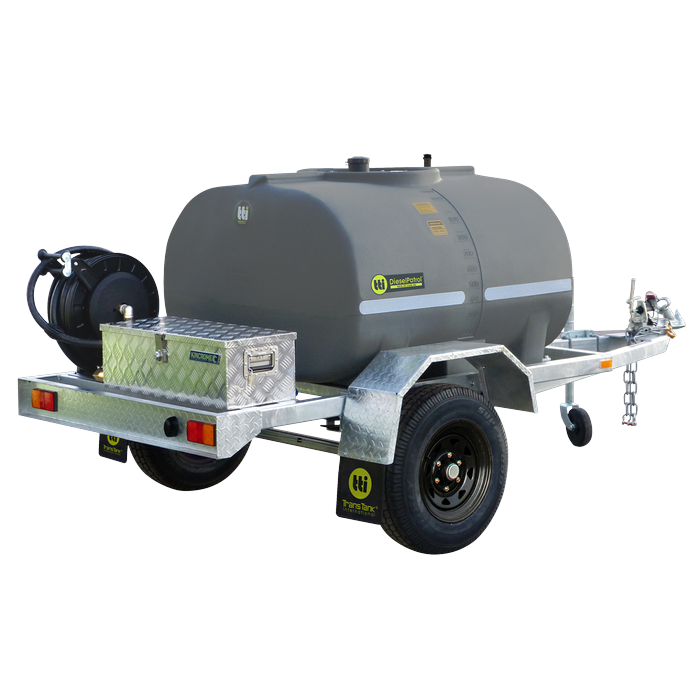

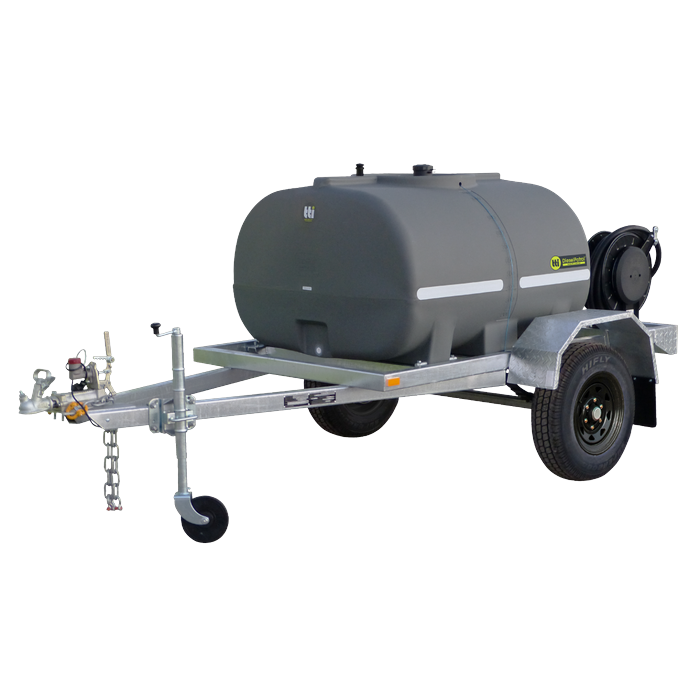

Trans Tank International DieselPatrol15 1000L Diesel Fuel Trailer
Running the fuel ute back and forth wastes the best hours of your day. Bring the pump to the work instead.

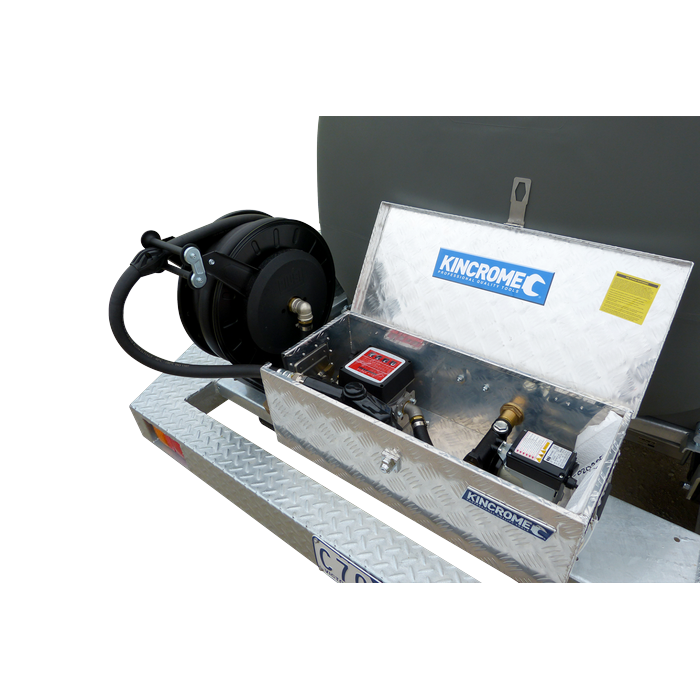

At its rated 60L/min, the DieselPatrol15 1000L empties its tank in about 17 minutes. The pump sits in a lockable toolbox. Fuel flows through a 10m retractable reel, a 4 digit flow meter and a cartridge filter before it reaches your machine.
A fully drainable poly tank and LiquidLocker™ baffles keep the load stable. Choose unbraked or braked to match where you tow.
Features, Benefits & Outcomes
-
1000L fully drainable poly tank gives you a clean tank with a 25 year warranty.
-
4 digit mechanical flow meter shows exactly how much diesel each machine takes.
-
Cartridge filter protects the pump and your engines from contaminated fuel.
-

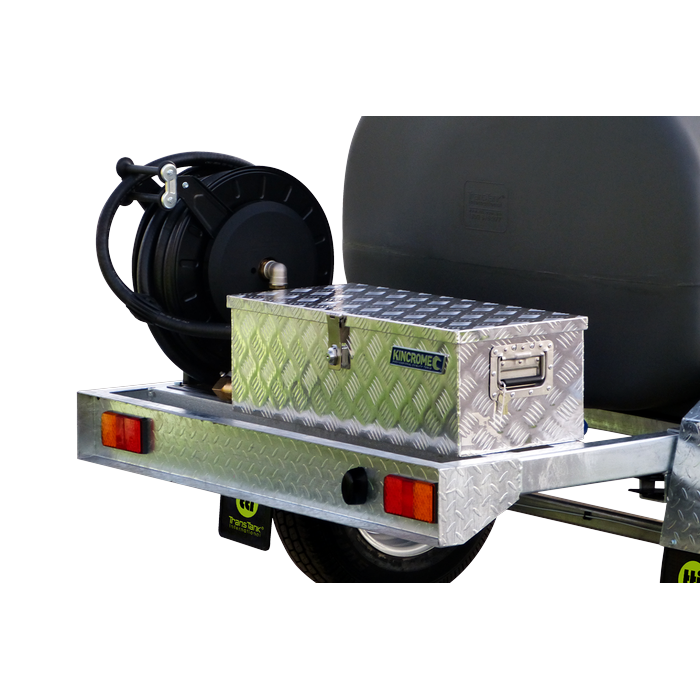

10m retractable reel with 25mm hose covers the distance and rewinds off the ground.
-
Single axle on 15 inch Landcruiser wheels tows light at 487kg unbraked.
Technical Specifications
- Capacity: 1000 litres
- Weight (empty): 487kg unbraked, 513kg braked
- Length: 3833mm unbraked, 3883mm braked
- Width: 1910mm
- Height: 1582mm unbraked, 1597mm braked
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Filling point: 2 inch lockable
- Chassis: hot-dipped galvanised steel, single axle, 50mm tow hitch
- Wheels and tyres: 15 inch Landcruiser pattern, 6 ply radial, wheel nut indicators
- Pump: 60L/min 12v in lockable toolbox
- Reel and hose: 10m retractable reel, 25mm anti kink hose, 1 inch nozzle
- Lights: recessed LED combination tail lights and licence plate light
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades
Need to refuel with no battery on hand? Swap the 12v pump for a Honda GX160 490L/min petrol driven pump kit.
Request a Quote
Ask us to price the Honda GX160 upgrade on your DieselPatrol15 1000L. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol15 1000L FAQ
What can tow this trailer?
Any vehicle with a 50mm tow ball and enough rated capacity for the fully loaded trailer. Check your vehicle's limits before you tow.
Can I carry anything besides diesel?
No. The tank, pump and fittings are built for diesel only. Other liquids can damage the components and affect safety.
How do I keep the pump working well?
Check the cartridge filter often and replace it when dirty. Keep water and contaminants out of the tank and avoid washing the tank out with water.
What if I find a leak?
Stop using the trailer and secure the area. Inspect for damage and have a qualified technician repair it before you use it again.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
