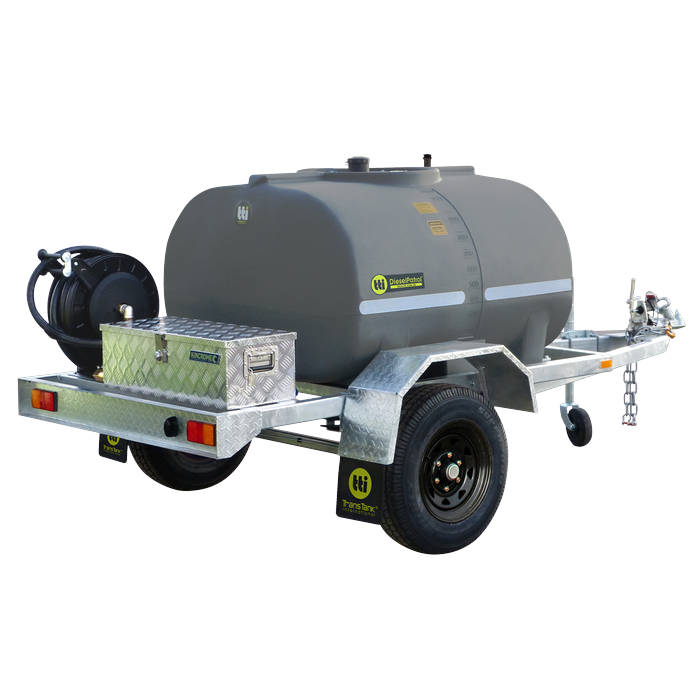

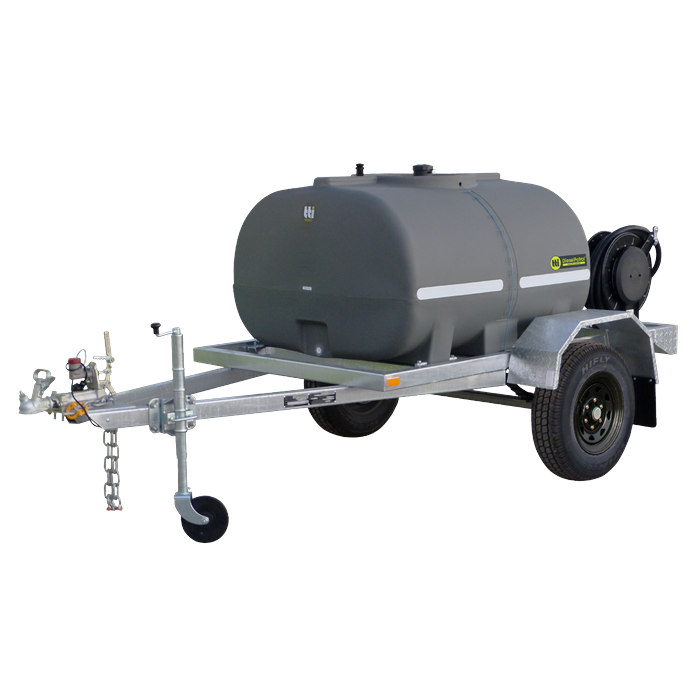

Trans Tank International DieselPatrol14 1000L Diesel Fuel Trailer
Refuelling from drums and jerry cans eats time and risks spills. A trailer that rolls up to the machine solves both.
The DieselPatrol14 1000L keeps the setup simple. A fully drainable 1000 litre poly tank rides on a hot-dipped galvanised chassis. A 60L/min 12v pump in a lockable toolbox sends fuel through 6m of hose to an auto shut-off nozzle.
LiquidLocker™ baffles settle the load on the move. Pick unbraked for paddock work or braked for the road.
Features, Benefits & Outcomes
-
1000L UV stabilised poly tank drains fully and carries a 25 year warranty.
-

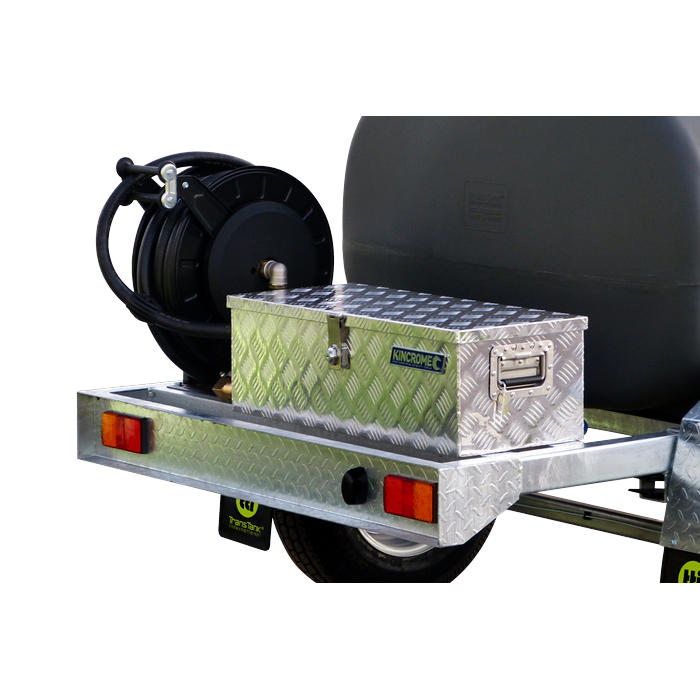

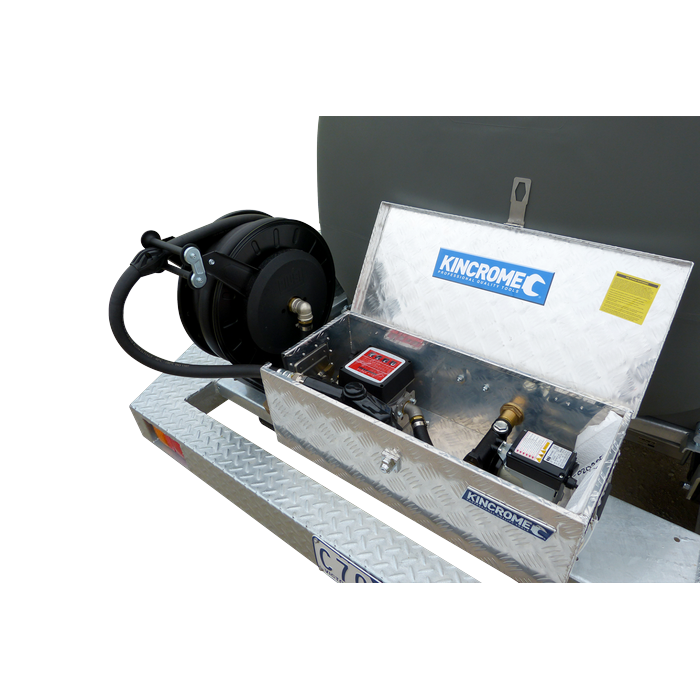

60L/min 12v pump in a lockable toolbox fills machines at pace and keeps the pump secure.
-
6m hose with auto shut-off nozzle reaches the machine and stops the flow when the tank is full.
-
LiquidLocker™ baffles calm fuel surge for steadier towing.
-
350kg unbraked weight on 14 inch wheels keeps the trailer light behind your tow vehicle.
Technical Specifications
- Capacity: 1000 litres
- Weight (empty): 350kg unbraked, 380kg braked
- Length: 3558mm
- Width: 1760mm
- Height: 1441mm
- Tank: diesel grade polyethylene, AS1940-2004 and AS2809.2-2008, ADR compliant
- Lid: 455mm opening with breather and filler cap
- Chassis: hot-dipped galvanised steel, 50mm tow hitch
- Wheels: 14 inch with chequer plate mudguards
- Pump: 60L/min 12v in lockable toolbox
- Delivery: 6m of 3/4 inch hose, 3/4 inch auto shut-off nozzle
- Lights: LED combination tail and number plate lights
- Compliance: ROVER Vehicle Type Approval
- Warranty: 25 year tank warranty
Optional Upgrades
Build the DieselPatrol14 out to suit your refuelling routine. Available add ons include a 10m retractable diesel hose reel, a 4 digit or 5 digit flow meter and a cartridge filter.
Request a Quote
Tell us which upgrades you want on your DieselPatrol14 1000L and we will price your configuration. Contact us at 1300 079 161 or fill out the form below.
DieselPatrol14 1000L FAQ
Which upgrades can I add?
You can add a 10m retractable hose reel, a mechanical or electronic flow meter and a cartridge filter. Request a quote and we will price your setup.
Is the DieselPatrol14 road registrable?
The braked version is, with hydraulic override brakes. The unbraked version stays on the farm.
How should I store it?
Keep it in a cool, dry spot out of direct sun, with the toolbox locked. Store it with the tank partly filled or add a diesel stabiliser for long breaks.
Can I put petrol through the pump?
No. The pump and tank are for diesel only. Other fuels can damage components and affect safety.
What should I check regularly?
Look over the hose and pump, check the chassis for corrosion and keep the tank free of contaminants.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
