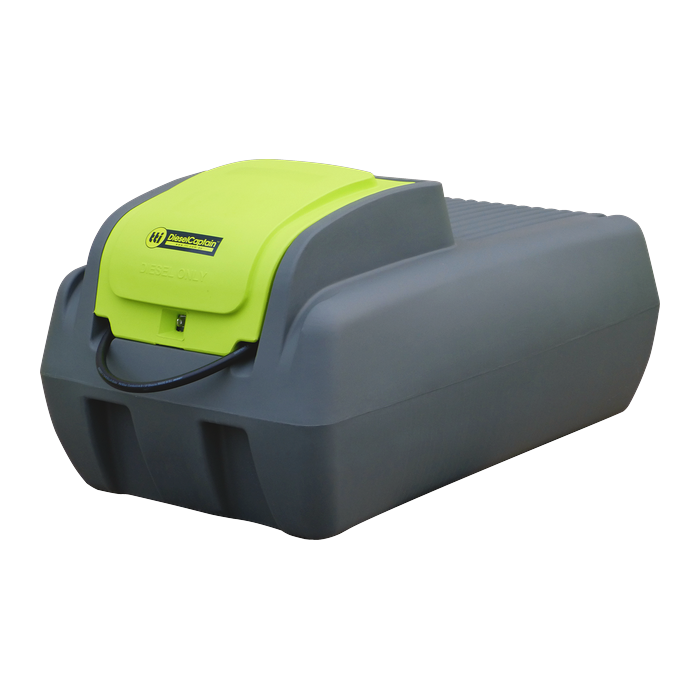

Trans Tank International DieselCaptain 800L Portable Diesel Tank with Ball Baffle
The DieselCaptain 800L with ball baffle steps up capacity while keeping the surge-reducing baffle system that makes this range suited to regular trailer or tray transport. Choose between a Fluid 12 volt 60 L/min pump kit for steady, dependable flow, or the faster Svelto 12 volt 80 L/min kit with its own suction hose for quicker refuelling.
Features, Benefits & Outcomes
-
800 litre capacity with ball baffle system reduces fuel surge during transport, improving load stability over longer hauls or rough terrain.
-
Choice of 60 L/min or 80 L/min 12 volt pump kits lets you match flow rate to your refuelling volume and pace.
-

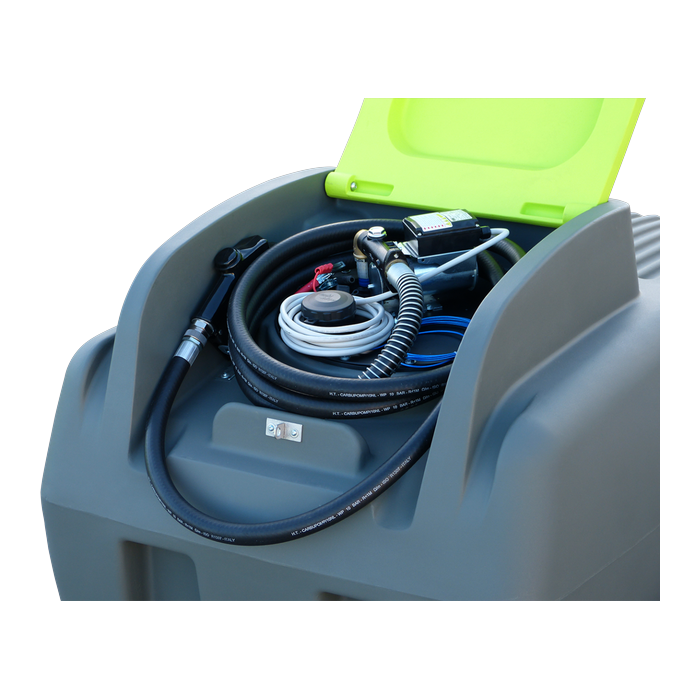

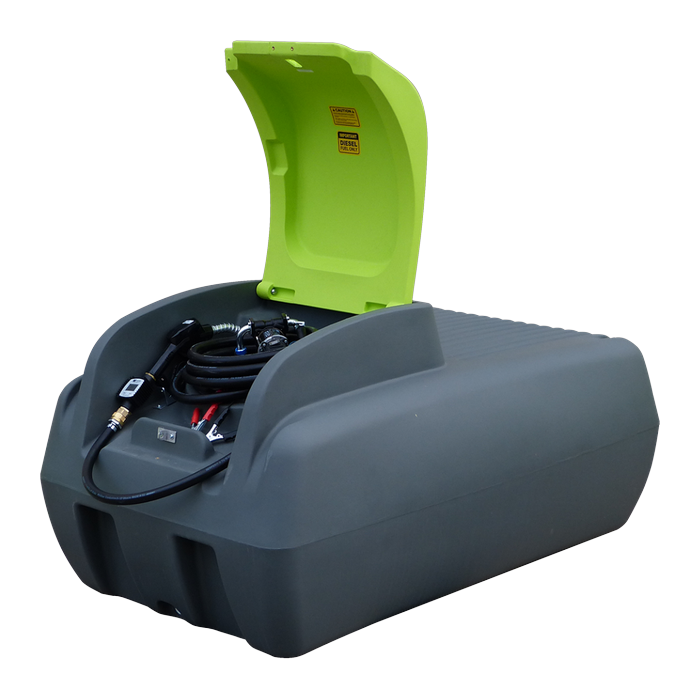

Weatherproof, pad-lockable pump cover protects the pump kit from the elements and secures it against tampering on site.
-
Auto shut-off nozzle with 6m delivery hose (plus 2m suction hose on the 80 L/min kit) cuts the flow automatically once full, with strong reach for larger equipment.
-
UV-stabilised poly tank construction backed by TTi's 25 year tank warranty, built to handle outdoor Australian conditions without cracking or degrading.
Technical Specifications
- Capacity: 800 litres
- Dimensions (L x W x H): 1700 x 1000 x 860mm
- Weight: 88–93kg (empty, pump-kit dependent)
- Pump options: Fluid 12V 60 L/min, or Svelto 12V 80 L/min
- Nozzle: Auto shut-off
- Delivery hose: 6m x 25mm (plus 2m suction hose on 80 L/min kit)
- Includes: 4m battery cables, earth strap, safety ball baffle system
- Tank construction: UV-stabilised polyethylene
- Warranty: 25 year tank warranty
Optional Upgrades
-
Pump Kit: choose Fluid 12V 60 L/min for steady, dependable flow, or Svelto 12V 80 L/min for the fastest refuelling in this range.
-
Steel Frame: add a steel frame with forklift points for easier loading, unloading and repositioning on site. Available on either pump kit option.
DieselCaptain 800L Ball Baffle FAQ
What's the benefit of the 80 L/min Svelto pump over the 60 L/min Fluid pump?
The Svelto 80 L/min kit moves fuel faster and includes its own suction hose, suited to operators who refuel larger equipment or want to cut down time spent at each fill.
Why choose the ball baffle version over the standard 800L?
The ball baffle system reduces fuel surge during transport, which helps keep the load stable if the tank is regularly moved on a trailer or over uneven ground.
Is the pump protected from weather and dust?
Yes, both pump kit options sit under a weatherproof, pad-lockable cover.
What's included with the unit?
Each unit includes the pump kit, delivery hose, auto shut-off nozzle, battery cables, earth strap and the ball baffle system.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
