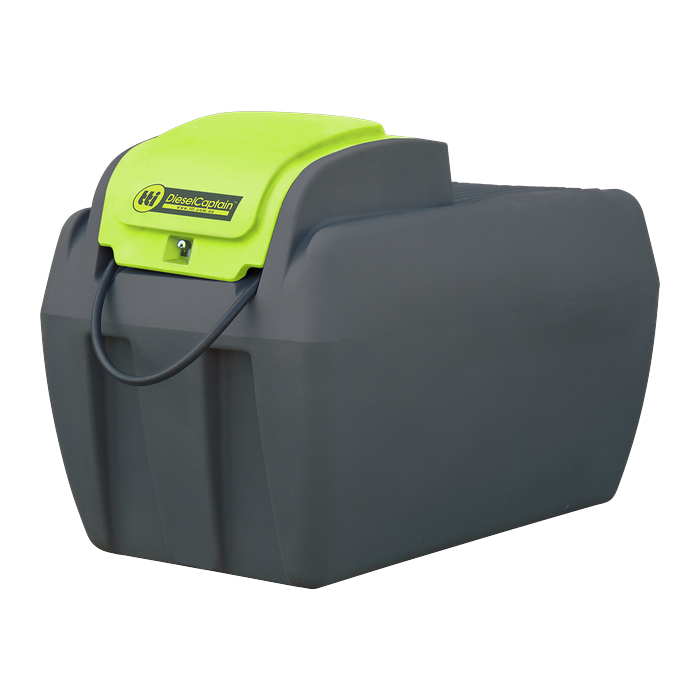

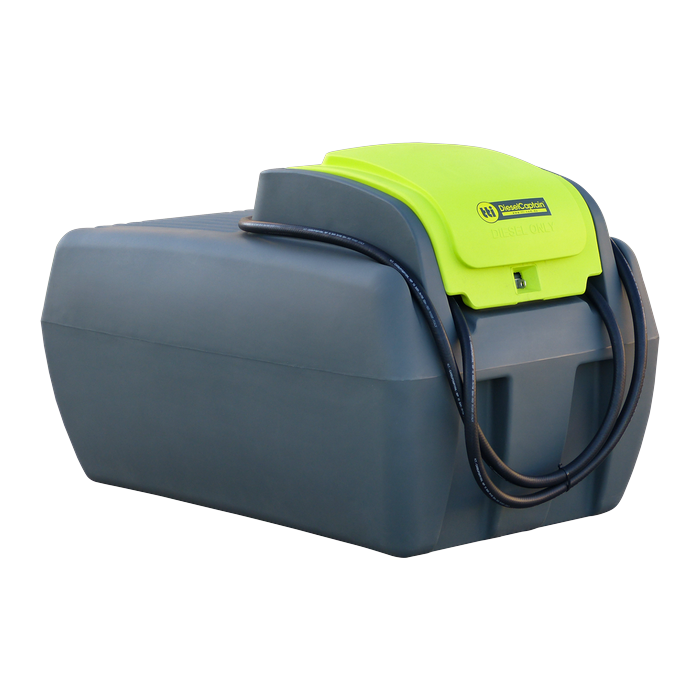

TTi DieselCaptain 1200L Portable Diesel Tank with Ball Baffle
The DieselCaptain 1200L with ball baffle is the largest unit in the Captain range, built for operators who need maximum diesel capacity on a single tray or trailer run while keeping fuel surge under control during transport. Choose between a Fluid 12 volt 60 L/min pump kit or a faster Svelto 12 volt 80 L/min kit depending on how quickly you need to turn equipment around.
Features, Benefits & Outcomes
-
1200 litre capacity with ball baffle system reduces fuel surge during transport, keeping the load stable over longer hauls and rougher ground.
-
Choice of Fluid 60 L/min or Svelto 80 L/min 12 volt pump kits lets you match flow rate to the size of equipment and number of refuels per day.
-

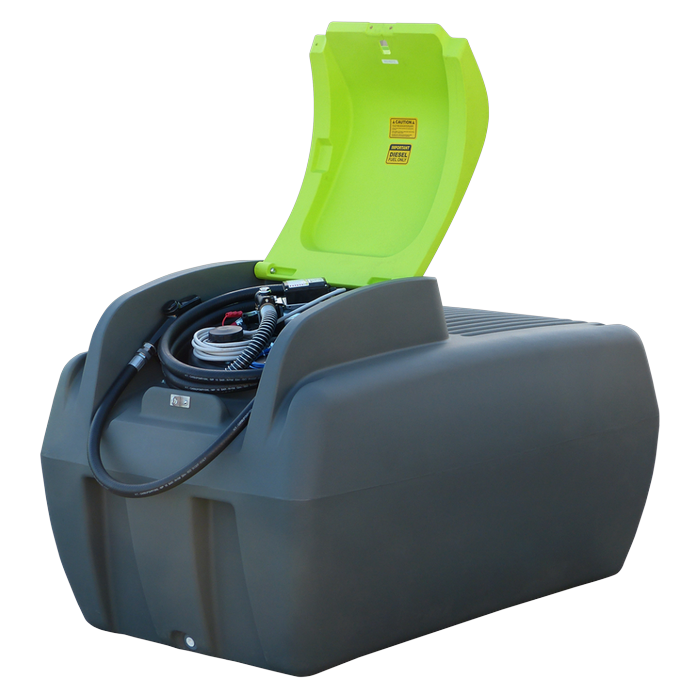

Weatherproof, pad-lockable pump cover protects the pump kit from the elements and secures it against tampering on site.
-

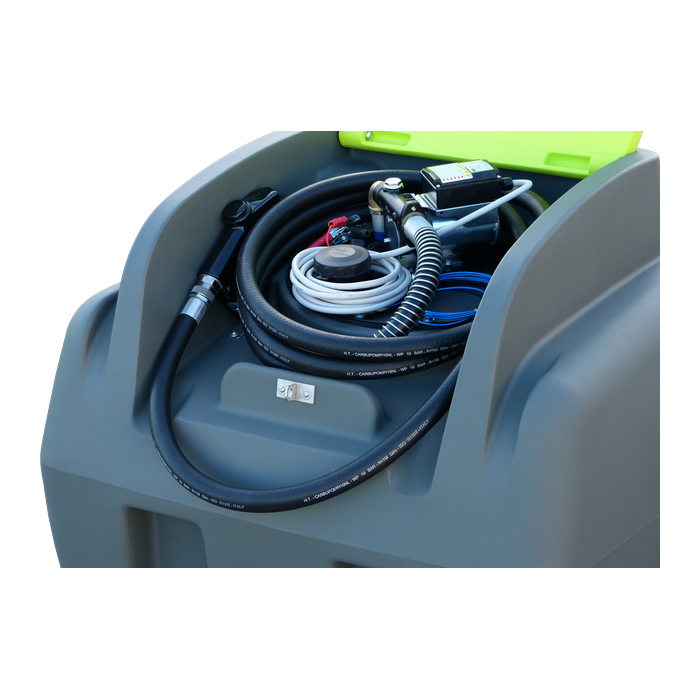

Auto shut-off nozzle with 6m delivery hose cuts the flow automatically once full, reducing spill risk even on a tank this size.
-
UV-stabilised poly tank construction backed by TTi's 25 year tank warranty, built to handle outdoor Australian conditions without cracking or degrading.
Technical Specifications
- Capacity: 1200 litres
- Dimensions (L x W x H): 1700 x 1000 x 1190mm
- Weight: 115–120kg (empty, pump-kit dependent)
- Pump options: Fluid 12V 60 L/min, or Svelto 12V 80 L/min
- Nozzle: Auto shut-off
- Delivery hose: 6m x 25mm
- Includes: 4m battery cables, earth strap, safety ball baffle system
- Tank construction: UV-stabilised polyethylene
- Warranty: 25 year tank warranty
Optional Upgrades
-
Pump Kit: choose Fluid 12V 60 L/min for steady, reliable refuelling, or Svelto 12V 80 L/min for the fastest flow rate in this range.
-
Steel Frame: add a steel frame with forklift points for easier loading, unloading and repositioning on site. Available on either pump kit option.
DieselCaptain 1200L Ball Baffle FAQ
Is the 1200L the largest DieselCaptain tank available?
Yes — it's the biggest unit in the ball baffle DieselCaptain range, suited to operators wanting maximum capacity in a single transfer tank.
What's the difference between the Fluid and Svelto pump kits?
The Fluid kit runs at 60 L/min for steady, reliable refuelling, while the Svelto kit steps up to 80 L/min for operators who want to minimise time spent refuelling larger fleets or equipment.
Does the ball baffle make a noticeable difference at this size?
Yes — at 1200 litres, an unbaffled tank can surge significantly under braking or on rough ground. The ball baffle system helps keep the load stable during transport.
Is this tank suited to permanent trailer mounting or does it need to be portable?
It's designed as a portable unit that sits on a tray or trailer deck, so it can be moved between vehicles or sites as needed, despite its larger size.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
