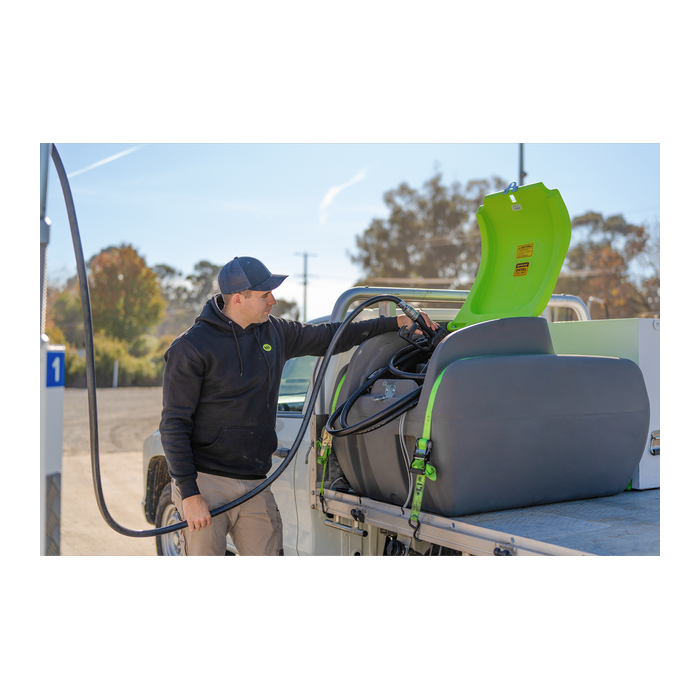

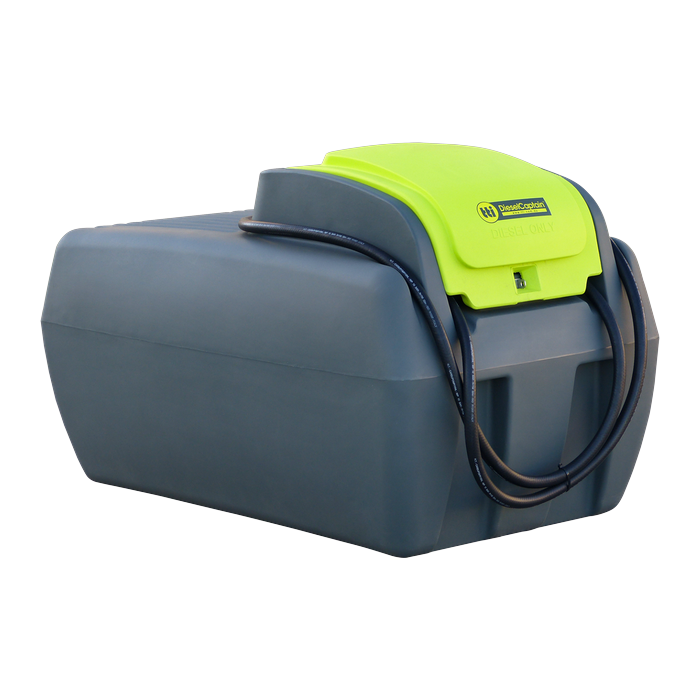

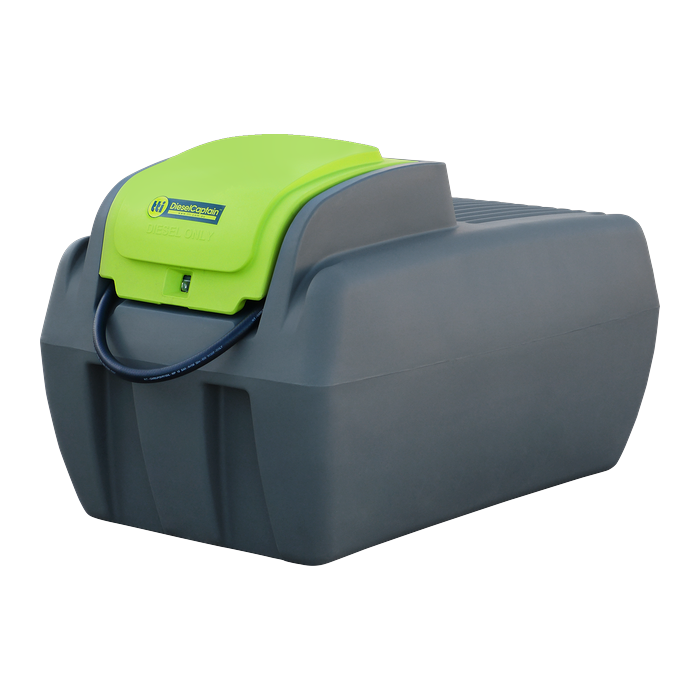

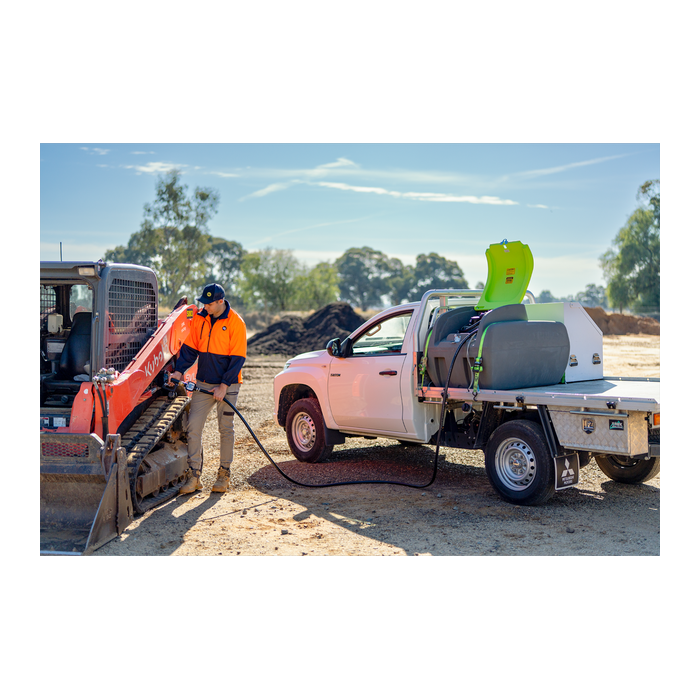

Trans Tank International DieselCaptain 1000L Portable Diesel Tank with Ball Baffle
The DieselCaptain 1000L with ball baffle carries serious diesel capacity while keeping fuel surge in check during transport. With three 12 volt pump kit options from 50 to 80 L/min, you can match the flow rate to your typical refuelling pace, whether that's routine top-ups or faster, higher-volume jobs.
Features, Benefits & Outcomes
-
1000 litre capacity with ball baffle system reduces fuel surge during transport, improving load stability for regular trailer or tray transport.
-
Three 12 volt pump kit options (50, 60 or 80 L/min) let you match flow rate to your refuelling volume and pace.
-

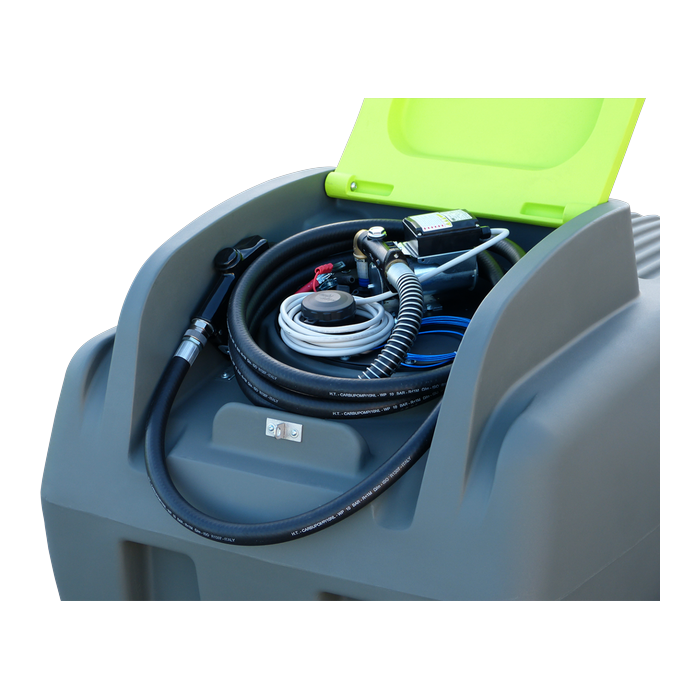

Weatherproof, pad-lockable pump cover protects the pump kit from the elements and secures it against tampering on site.
-
Auto shut-off nozzle with up to 6m delivery hose (plus suction hose on the 80 L/min kit) cuts the flow automatically once full, with strong reach for larger equipment.
-
UV-stabilised poly tank construction backed by TTi's 25 year tank warranty, built to handle outdoor Australian conditions without cracking or degrading.
Technical Specifications
- Capacity: 1000 litres
- Dimensions (L x W x H): 1700 x 1000 x 1025mm
- Weight: 95–103kg (empty, pump-kit dependent)
- Pump options: Piusi 12V 50 L/min, Fluid 12V 60 L/min, or Svelto 12V 80 L/min
- Nozzle: Auto shut-off
- Delivery hose: up to 6m x 20–25mm (plus 2m suction hose on 80 L/min kit)
- Includes: 4m battery cables, earth strap, safety ball baffle system
- Tank construction: UV-stabilised polyethylene
- Warranty: 25 year tank warranty
Optional Upgrades
-
Pump Kit: choose Piusi 12V 50 L/min for routine refuelling, Fluid 12V 60 L/min for more frequent or higher-volume use, or Svelto 12V 80 L/min for the fastest flow rate in this range.
-
Steel Frame: add a steel frame with forklift points for easier loading, unloading and repositioning on site. Available on any pump kit option.
DieselCaptain 1000L Ball Baffle FAQ
Which pump kit should I choose for 1000 litres?
50 L/min suits routine refuelling, 60 L/min suits more frequent or higher-volume use, and 80 L/min is the fastest option for operators who want to minimise time spent refuelling.
Does the ball baffle add much weight to the tank?
The baffle system adds some weight over a non-baffled equivalent, but it's built into the tank's overall listed weight, so there's nothing extra to account for when planning transport.
What's the benefit of this size over the 800L DieselCaptain?
The extra 200 litres gives more diesel on hand between refills, useful for operators covering larger properties or longer job runs.
Is the pump protected from weather and dust?
Yes, all pump kit options sit under a weatherproof, pad-lockable cover.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
