Trans Tank International BlueMission 200L AdBlue Transfer Tank
A machine with an empty AdBlue tank slows the whole job. Carry enough on site and you keep working.

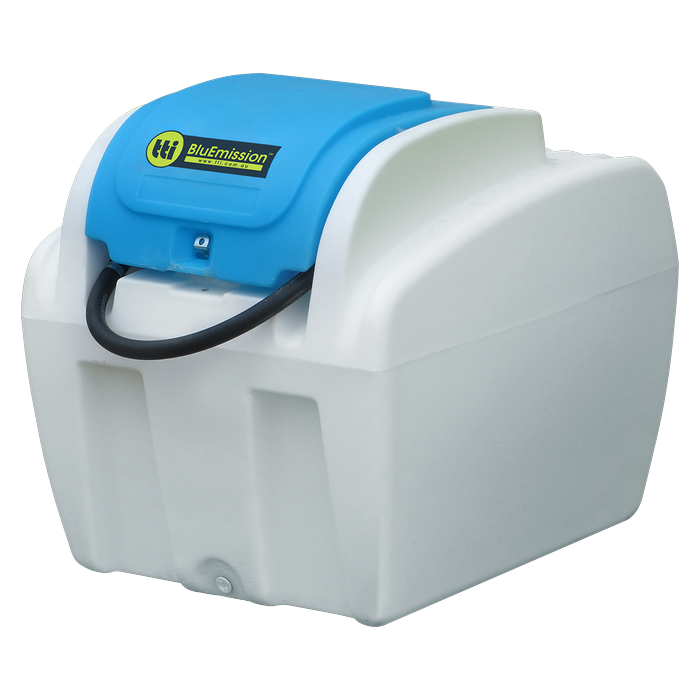

The BlueMission 200L AdBlue transfer tank holds 200 litres of diesel exhaust fluid (DEF), twice the volume of the 100L unit, on the same 800 x 680mm footprint. The extra height gives you more AdBlue without more floor space. A 35L/min 12 volt pump empties the tank in about six minutes.

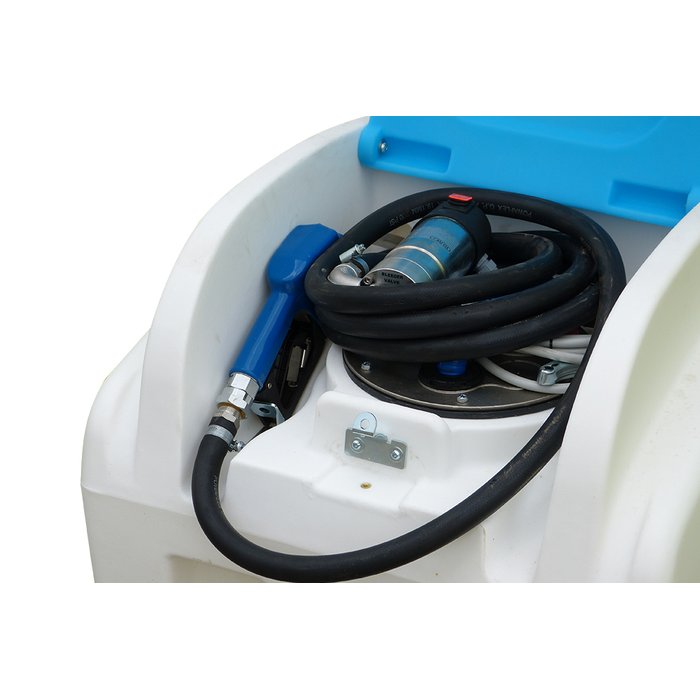

The tank is moulded from urea grade polyethylene, so it suits DEF. A lockable compartment keeps the pump and nozzle secure between jobs.
Features, Benefits & Outcomes
-
200 litre capacity covers several machines before you need to refill.
-
Compact 800 x 680mm footprint fits a ute tray, trailer or workshop corner.
-
35L/min 12 volt pump moves the full 200 litres in about six minutes.
-

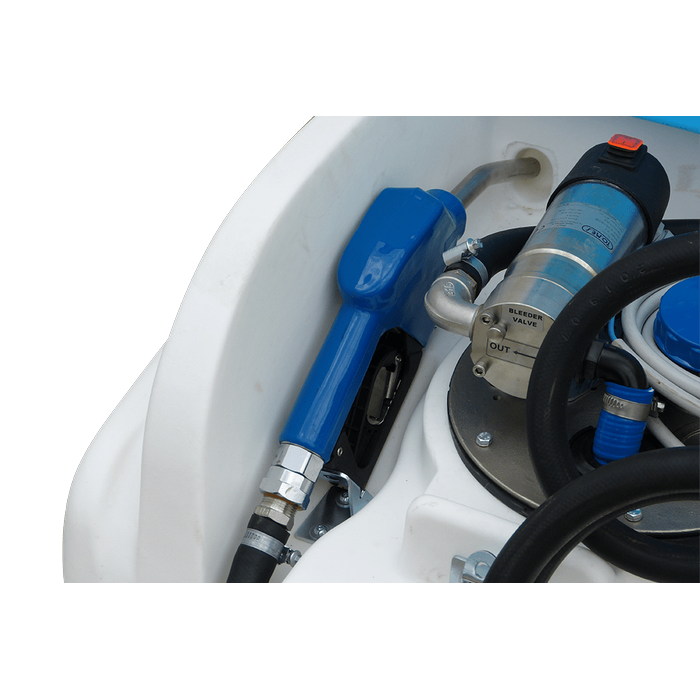

Auto shut-off nozzle stops the flow when the machine is full, so you spill less.
-
Lockable pump compartment keeps the pump and hose protected and secure.
Technical Specifications
- Capacity: 200 litres
- Dimensions (L x W x H): 800 x 680 x 710mm
- Weight: 34kg (empty)
- Pump: 12 volt, 35L/min, stainless steel with internal bypass
- Nozzle: Auto shut-off
- Delivery hose: 4m x 20mm
- Filler: 2 inch with pad-lockable cap
- Lid and breather: Stainless steel
- Includes: 4m battery cable with clips
- Tank construction: Urea grade polyethylene with EPDM gaskets and seals
- Warranty: 25 year tank warranty
BlueMission 200L AdBlue Transfer Tank FAQ
How is the 200L different from the 100L?
Both share the same length and width. The 200L stands 710mm high against 465mm for the 100L, so it holds twice the AdBlue in the same floor space.
Can I use this tank for diesel?
No. The tank and fittings are built for AdBlue (DEF) only. For diesel, choose one of our portable diesel tanks.
What do I connect the pump to?
The pump runs on 12 volts. Clip the 4 metre battery cable to a vehicle or machine battery and start dispensing.
How should I store AdBlue?
Keep it cool and dry, out of direct sunlight. TTi recommends storing AdBlue between -11°C and 30°C.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
