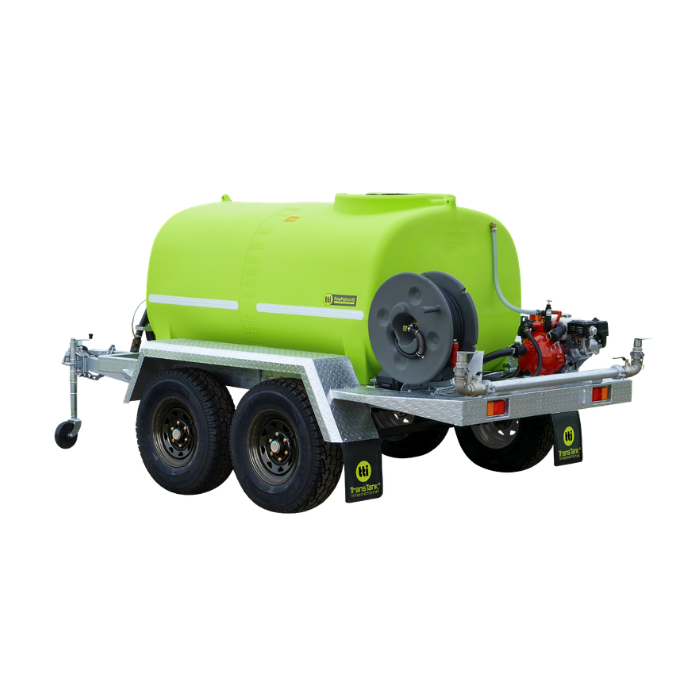

3000L FirePatrol15 Dual Axle Firefighting Trailer
The 3000L FirePatrol15 Dual Axle is the largest fire fighting trailer in TTi's range, built on a longer frame with a heavier-duty 70mm tow hitch to handle the serious weight of a full 3000 litre tank. It's available in two configurations: On Farm for use within your own property, or Road Registerable with lights and override brakes fitted for towing on public roads.
Features, Benefits & Outcomes
- 3000 litres is the biggest reserve TTi offers in a single trailer, suited to large-acreage properties and the highest fire risk situations.
- A longer 5400mm frame and a heavier-duty 70mm tow hitch are built specifically to handle the extra weight this capacity carries.
- Dual axle, roller rocker suspension keeps a fully-loaded trailer tracking true, even towing close to its maximum capacity.
- The GX200 Honda motor and twin impeller Davey pump maintain strong, consistent pressure through the 36 metre hose reel, regardless of how much water remains.
- The Safety Ball Baffle system is essential at this capacity, keeping thousands of litres of water from surging and destabilising the trailer in transit.
Technical Specifications
| Model |
FirePatrol15, dual axle |
| Tank capacity |
3000 litres |
| Engine |
GX200 Honda petrol motor |
| Pump |
1 1/2 inch twin impeller Davey fire fighting pump with pressure relief valve |
| Hose |
36m of 19mm hose on a hose reel with adjustable f/f nozzle |
| Extras |
Roller rocker suspension, camlock fittings, ball valve, bottom fill kit, jockey wheel, rear pump plate, 70mm tow hitch, Safety Ball Baffle system |
| Dimensions (L x W x H) |
5400 x 2150 x 1750mm |
| Weight |
Not specified by manufacturer |
| Available as |
On Farm (standard) or Road Registerable (adds lights & electric brakes with breakaway safety switch for towing on public roads) |
3000L FirePatrol15 Dual Axle Firefighting Trailer FAQ
What's the difference between the On Farm and Road Registerable options?
The Road Registerable option adds lights & electric brakes with breakaway safety switch, so you can legally tow it on public roads as well as on your own property. The On Farm option is for use within your own property boundaries only, and is priced accordingly. Select your preferred configuration above.
What tow vehicle do I need for a 3000L trailer?
This is the heaviest trailer in the FirePatrol15 range once loaded, and weight isn't specified by the manufacturer, so it's essential to confirm your vehicle's rated towing capacity before towing. Call us if you'd like help checking this against your vehicle.
Why does this model use a 70mm tow hitch instead of 50mm?
The larger hitch is rated for the greater towing loads this capacity generates, especially when the tank is close to full.
How do I refill the tank once it's empty?

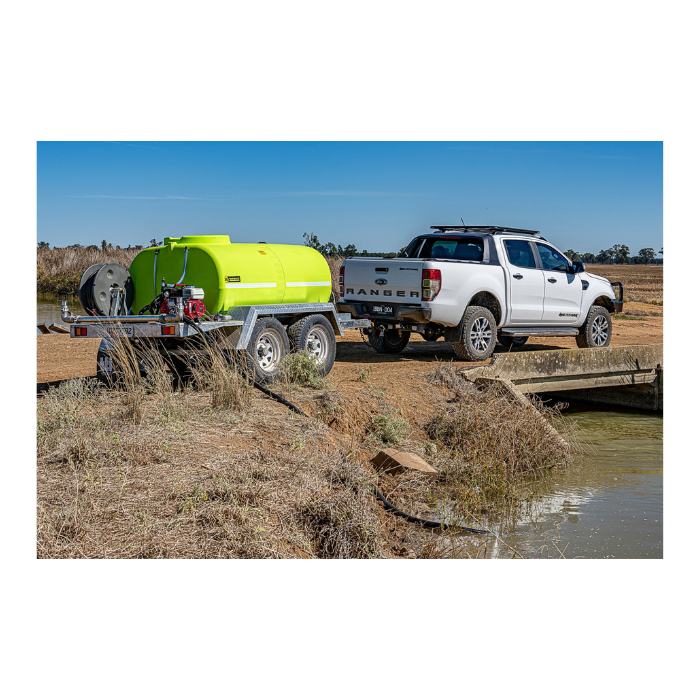

The trailer comes with a bottom fill kit and camlock fittings, so you can refill quickly from a dam, rainwater tank or hydrant.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
