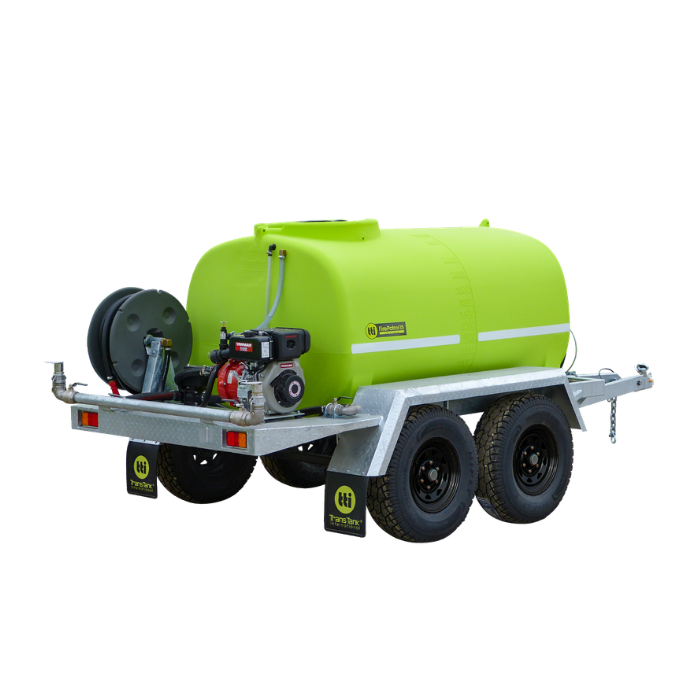

2400L FirePatrol15 Dual Axle Firefighting Trailer
The 2400L FirePatrol15 Dual Axle carries extra capacity over the 2000L model in the same trailer footprint, giving larger properties more water reserve without a longer or wider trailer to tow and store. It's available in two configurations: On Farm, with the GX200 Honda motor and twin impeller Davey pump, or Road Registerable, fitted with lights, electric brakes with breakaway safety switch, a GX160 Honda motor and 2 inch pump with front & rear pump plate for towing on public roads.
Features, Benefits & Outcomes
- 2400 litres is a substantial reserve, useful for properties with higher fire risk or where water access is limited.
- Dual axle, roller rocker suspension is built to carry the extra weight of a near-full tank without sacrificing towing stability.
- The On Farm configuration's GX200 Honda motor and twin impeller Davey pump maintain strong, consistent pressure through the 36 metre hose reel.
- The Safety Ball Baffle system is particularly valuable at this capacity, keeping a large volume of water from surging and destabilising the trailer.
- Dimensions match the 2000L dual axle model exactly, so you get more water without needing extra room to store or maneuver the trailer.
Technical Specifications
| Model |
FirePatrol15, dual axle |
| Tank capacity |
2400 litres |
| Engine (On Farm) |
GX200 Honda petrol motor |
| Pump (On Farm) |
1 1/2 inch twin impeller Davey fire fighting pump with pressure relief valve |
| Engine (Road Registerable) |
GX160 Honda petrol motor |
| Pump (Road Registerable) |
2 inch fire fighting pump with front & rear pump plate |
| Hose |
36m of 19mm hose on a hose reel with adjustable f/f nozzle |
| Extras |
Roller rocker suspension, camlock fittings, bottom fill kit, jockey wheel, 50mm tow hitch, Safety Ball Baffle system |
| Dimensions (L x W x H) |
5000 x 2150 x 1620mm (On Farm) / 5400 x 2150 x 1810mm (Road Registerable) |
| Weight |
Not specified by manufacturer |
| Available as |
On Farm (standard, GX200 twin impeller pump) or Road Registerable (GX160 motor, 2 inch pump, plus lights & electric brakes with breakaway safety switch for towing on public roads) |
2400L FirePatrol15 Dual Axle Firefighting Trailer FAQ
What's the difference between the On Farm and Road Registerable options?
Beyond the lights and electric brakes with breakaway safety switch fitted to the Road Registerable option for legal road towing, this particular 2400L model also pairs that configuration with a different engine and pump (a GX160 motor and 2 inch pump with front & rear pump plate, versus the On Farm version's GX200 motor and twin impeller pump) and a slightly longer, taller frame. Select your preferred configuration above.
How is this different from the 2000L model?
Both share the same On Farm trailer footprint, but the 2400L model carries 400 extra litres of water, so you get more capacity in a similar overall size.
Is there a bigger option than 2400L?
Yes, the 3000L FirePatrol15 Dual Axle is the largest trailer in the range, built on a longer frame and a heavier-duty 70mm tow hitch.

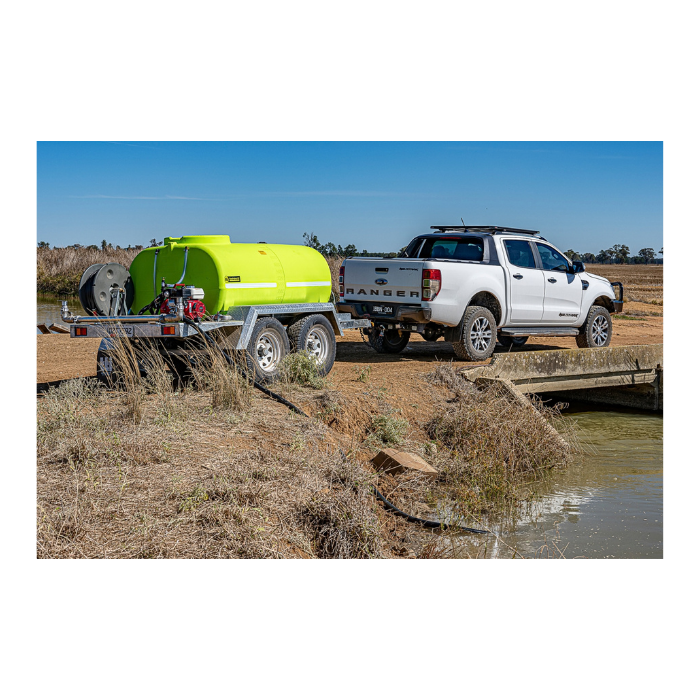

How do I refill the tank once it's empty?
The trailer comes with a bottom fill kit and camlock fittings, so you can refill quickly from a dam, rainwater tank or hydrant.
