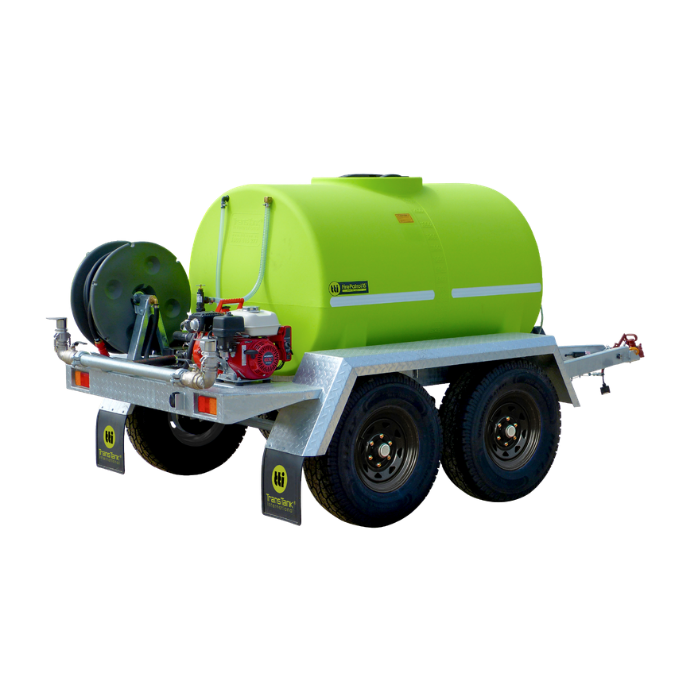

1500L FirePatrol15 Dual Axle Firefighting Trailer
The 1500L FirePatrol15 Dual Axle sits in the middle of TTi's dual axle lineup, built for mid-to-large properties that want a sizeable water reserve without moving into the largest 2000L-plus units. It's available in two configurations: On Farm for use within your own property, or Road Registerable with lights and override brakes fitted for towing on public roads.
Features, Benefits & Outcomes

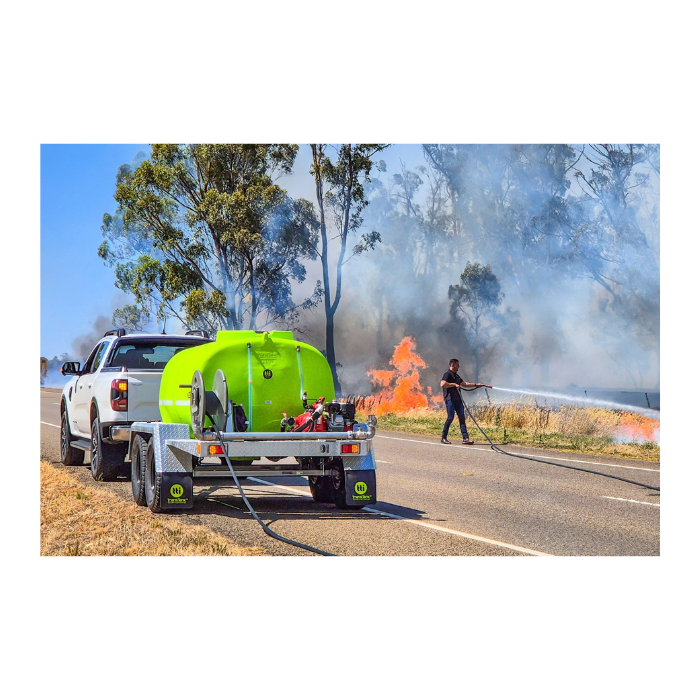

- 1500 litres gives you real staying power on the fire line before you need to stop and refill, useful on larger blocks or where water sources are further apart.
- Dual axle, roller rocker suspension spreads the extra weight evenly, so towing stays stable even with the tank close to full.
- The GX200 Honda motor and twin impeller Davey pump push strong, consistent pressure through the 36 metre hose reel.
- The tank height steps up to 1600mm on this model, giving you more capacity without a longer trailer footprint than the 1200L dual axle unit.
- The Safety Ball Baffle system stops the water surging inside the tank, keeping the trailer controlled even over bumpy ground.
Technical Specifications
| Model |
FirePatrol15, dual axle |
| Tank capacity |
1500 litres |
| Engine |
GX200 Honda petrol motor |
| Pump |
1 1/2 inch twin impeller Davey fire fighting pump with pressure relief valve |
| Hose |
36m of 19mm hose on a hose reel with adjustable f/f nozzle |
| Extras |
Roller rocker suspension, camlock fittings, ball valve, bottom fill kit, jockey wheel, rear pump plate, 50mm tow hitch, Safety Ball Baffle system |
| Dimensions (L x W x H) |
5000 x 2150 x 1600mm |
| Weight |
650kg (Road Registerable); not specified by manufacturer for the On Farm configuration |
| Available as |
On Farm (standard) or Road Registerable (adds lights & electric override brakes for towing on public roads) |
1500L FirePatrol15 Dual Axle Firefighting Trailer FAQ
What's the difference between the On Farm and Road Registerable options?
The Road Registerable option adds lights & electric override brakes, so you can legally tow it on public roads as well as on your own property. The On Farm option is for use within your own property boundaries only, and is priced accordingly. Select your preferred configuration above.
What does this trailer weigh?
TTi lists the Road Registerable model at 650kg. Always check that figure against your tow vehicle's rated towing capacity, factoring in the weight of water once the tank is filled, before towing.
Is 1500L a big step up from the 1200L model?
It's an extra 300 litres on the same length and width footprint (5000 x 2150mm), achieved with a taller 1600mm tank, so you get more capacity without a bigger trailer to maneuver.
How do I refill the tank once it's empty?

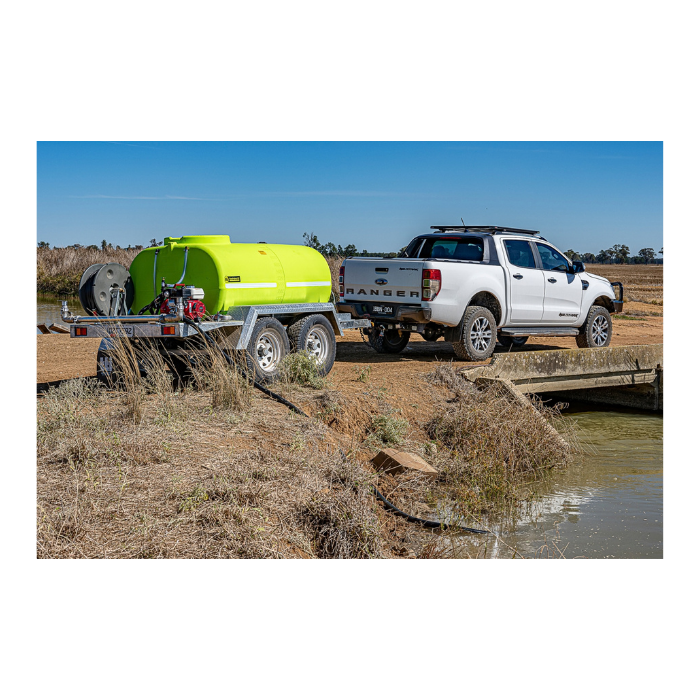

The trailer comes with a bottom fill kit and camlock fittings, so you can refill quickly from a dam, rainwater tank or hydrant.
Contact us at 1300 079 161 if you have any questions or if you just want to discuss the range!
